Product Details:

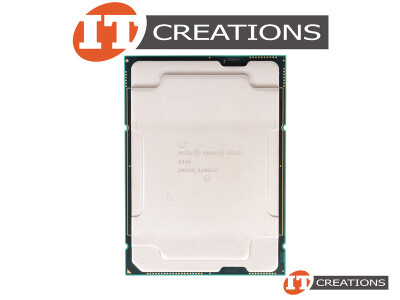

INTEL XEON GOLD 16 CORE PROCESSOR 6346 3.10GHZ BASE / 3.60GHZ MAX 36MB CACHE TDP 205W FCLGA4189 ( ICE LAKE ) ( 3RD GEN SCALABLE )
MANUFACTURER: INTEL
PART NUMBER: GOLD 6346
CPU SERIES: 3RD GEN INTEL XEON SCALABLE ( GOLD 6300 SERIES )
PROCESSOR CODE NAME: ICE LAKE
SOCKETS SUPPORTED: FCLGA4189
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 3.10GHZ
CPU MAX TURBO FREQUENCY: 3.60GHZ
MULTI-CORE: 16-CORE
THREADS: 32
CACHE: 36MB
INTEL UPI SPEED: 11.2 GT/S
NUMBER OF UPI LINKS: 3
LITHOGRAPHY: 10NM
THERMAL DESIGN POWER: 205W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 6TB ( 6,000GB )
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 3200 MHZ
MAX NUM. MEMORY CHANNELS: 8
ECC MEMORY SUPPORTED: YES
INTEL OPTANE DC PERSISTENT MEMORY SUPPORTED: YES
EXPANSION OPTIONS
SCALABILITY: 2S
PCI EXPRESSION REVISION: 4.0
MAX NUM. OF PCI LANES: 64
ADVANCED TECHNOLOGIES
INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
INTEL SPEED SELECT TECHNOLOGY - TURBO FREQUENCY: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: YES
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES
SECURITY & RELIABILITY
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBE ): YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 64GB
INTEL CRYPTO ACCELERATION: YES
