Product Details:

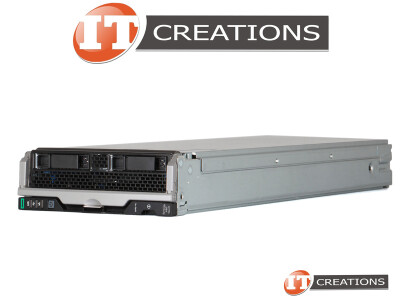

HPE SYNERGY 480 G9 BLADE 2.5 INCH SFF 2 BAY HPHD HALF HEIGHT COMPUTE MODULE SERVER CHASSIS ( GEN9 ) ( FOR HPE SYNERGY 12000 FRAME ENCLOSURE ) - SMALL FORM FACTOR 2B / 2SFF HOT PLUG HARD DRIVE
MANUFACTURER: HP
PART NUMBER: HP 480 G9
COMPATIBILITY: HPE SYNERGY 12000 FRAME ENCLOSURE
NOTE: THIS MODEL IS A 2.5 INCH SFF 2 BAY STANDARD OPTION ONLY. AN ENCLOSURE IS REQUIRED FOR OPERATING THIS SYSTEM. THIS OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA2011-3
PROCESSOR COMPATIBILITY: INTEL XEON E5-2600V4 PROCESSORS ( BROADWELL )
PROCESSOR CORE COUNT: UP TO 22 CORES PER SOCKET
PROCESSOR TDP: UP TO 145W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 24 ) TWENTY FOUR DIMM SLOTS ( 12 DIMMs PER PROCESSOR )
MEMORY GENERATION: DDR4
LRDIMM MEMORY SIZE CAPACITY: UP TO 1.5TB
RDIMM MEMORY SIZE CAPACITY: UP TO 768GB
MEMORY SPEEDS: DDR4-2400MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 4 CHANNELS PER PROCESSOR ( SUPPORTS 3 DIMMS PER CHANNEL )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 2 ) TWO 2.5 INCH SFF HOT PLUG HARD DRIVES
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS / SATA / PCIE NVME
MAX STORAGE SIZE:
- 4TB ( SAS HDD )
- 4TB ( SATA HDD )
- 7.68TB ( SAS SSD )
- 3.2TB ( SATA SSD )
- 4TB ( PCIE NVME SSD )
- 1.36TB ( UFF SATA SSD )
ADDITIONAL STORAGE SUPPORT: ( 4 ) FOUR M.2 INTERFACES VIA UFF ENABLEMENT KIT
NOTE:
- EACH HARD DRIVE BAY SUPPORTS 2 UFF DRIVES. FOR A TOTAL OF 4 UFF DRIVES
- HPE DRIVES FROM GEN7 SERVERS AND OLDER ARE NOT SUPPORTED WITH THIS SYSTEM
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 3 ) THREE PCI-E 3.0 MEZZANINE CONNECTORS
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES VARY
- 2X16 ( TYPE D / TYPE C ) ( EXPANSION SLOT1 / SLOT2 )
- 1X16 ( TYPE C ) ( EXPANSION SLOT3 )
NOTE:
- EXPANSION SLOT1 SUPPORTS DUAL PORT MEZZ CARDS: ONE PORT IS ROUTED TO INTERCONNECT MODULE BAY 1 AND THE OTHER TO BAY 4
- EXPANSION SLOT2 SUPPORTS DUAL PORT MEZZ CARDS. ONE PORT IS ROUTED TO INTERCONNECT MODULE BAY 2 AND THE OTHER TO BAY 5
- EXPANSION SLOT2 REQUIRES PROCESSOR 2 CONFIGURATION
- EXPANSION SLOT3 SUPPORTS DUAL PORT MEZZ CARDS. ONE PORT IS ROUTED TO INTERCONNECT MODULE BAY 3 AND THE OTHER TO BAY 6
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NOTE:
- POWER SOURCE IS GENERATED FROM THE ENCLOSURE. ENCLOSURE IS NOT INCLUDED WITH THIS OPTION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER
- MICROSOFT HYPER-V SERVER
- RED HAT ENTERPRISE LINUX SERVER ( SLES )
- SUSE LINUX ENTERPRISE SERVER ( SLES )
- VMWARE ESXI
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED JULY 2017 - INFORMATION MAY CHANGE
