Product Details:

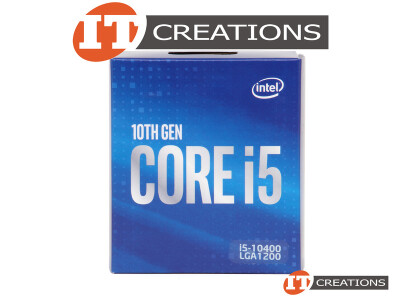

INTEL CORE I5 6 CORE PROCESSOR I5-10400 2.90GHZ BASE / 4.30GHZ MAX 12MB SMART CACHE 8 GT/S BUS SPEED TDP 65W FCLGA1200 ( COMET LAKE )
MANUFACTURER: INTEL
PART NUMBER: SRH78-RETAIL
CPU SERIES: 9TH GEN INTEL CORE I5 PROCESSORS FAMILY
PROCESSOR CODE NAME: COMET LAKE
SOCKETS SUPPORTED: FCLGA1200 ( SOCKET H4 )
MAX CPU CONFIGURATION: 1
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 2.90GHZ
CPU MAX TURBO FREQUENCY: 4.30GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.30GHZ
MULTI-CORE: 6-CORE
THREADS: 12
CACHE: 12MB INTEL SMART
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER ( TDP ): 65W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 128GB
MEMORY TYPES: DDR4-2666
MAX MEMORY SPEEDS: 2666 MHZ
MAX NUM. MEMORY CHANNELS: 2
MAX MEMORY BANDWIDTH: 41.6GB/S
ECC MEMORY SUPPORTED: NO
PROCESSOR GRAPHICS
PROCESSOR GRAPHICS: INTEL UHD GRAPHICS 630
GRAPHICS BASE FREQUENCY: 350 MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.10 GHZ
GRAPHICS VIDEO MAX MEMORY: 64GB
4K SUPPORT: YES, AT 60HZ
MAX RESOLUTION ( HDMI ): 4096 X 2160 AT 30HZ
MAX RESOLUTION ( DP ): 4096 X 2304 AT 60HZ
MAX RESOLUTION ( EDP - INTEGRATED FLAT PANEL ): 4096 X 2304 AT 60HZ
DIRECTX SUPPORT: 12
OPENGL SUPPORT: 4.5
INTEL QUICK SYNC VIDEO: YES
INTEL INTRU 3D TECHNOLOGY: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
INTEL CLEAR VIDEO TECHNOLOGY: YES
NUMBER OF DISPLAYS SUPPORTED: 3
DEVICE ID: 0X9BC8 / 0X9BC5
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESSION REVISION: 3.0
PCI EXPRESSION CONFIGURATIONS: UP TO 1X16, 2X8, 1X8 + 2X4
MAX NUM. OF PCI LANES: 16
ADVANCED TECHNOLOGIES
INTEL OPTANE MEMORY SUPPORTED: YES
INTEL THERMAL VELOCITY BOOST: NO
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: NO
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL VPRO PLATFORM ELIGIBILITY: NO
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: NO
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL SSE4.2, INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL IDENTITY PROTECTION TECHNOLOGY: YES
INTEL STABLE IMAGE PLATFORM PROGRAM ( SIPP ): NO
SECURITY & RELIABILITY
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL ME
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: NO
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
