Product Details:

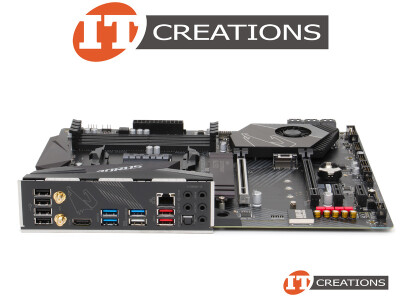

GIGABYTE X570 AORUS ELITE WIFI GAMING MOTHERBOARD - SYSTEM BOARD ( 1 ) ONE AMD AM4 CPU SOCKET ( 4 ) FOUR DDR4 DIMM SLOTS ( 2 ) TWO M.2 M KEY INTERFACES ( 22110 / 2280 / 2260 / 2242 )
MANUFACTURER: GIGABYTE
PART NUMBER: X570 AORUS ELITE WIFI
PROCESSOR DETAIL
NUMBER OF PROCESSORS SUPPORTED: ( 1 ) ONE PROCESSOR
SOCKET TYPE: AMD AM4 SOCKET
PROCESSOR TYPE: AMD RYZEN 5000 SERIES / 3RD GEN AMD RYZEN / 2ND GEN AMD RYZEN / 3RD GEN AMD RYZEN WITH RADEON VEGA GRAPHICS / 2ND GEN AMD RYZEN WITH RADEON VEGA GRAPHICS / AMD RYZEN WITH RADEON VEGA GRAPHICS
MEMORY DETAIL
NUMBER OF MEMORY SLOTS: 4 TOTAL MEMORY SLOTS
MEMORY SIZE CAPACITY: UP TO 128GB ( 32GB SINGLE DIMM CAPACITY )
MEMORY CHANNELS: DUAL CHANNEL
MEMORY TYPE WHEN USING AMD RYZEN 5000 OR 3RD GEN AMD RYZEN ( DDR4 ): 4400MHZ OC / 4000MHZ OC / 3866MHZ OC / 3733MHZ OC / 3600MHZ OC / 3466MHZ OC / 3400MHZ OC / 3300 OC / 3200MHZ / 2933MHZ / 2666MHZ / 2400MHZ / 2133MHZ
MEMORY TYPE WHEN USING 3RD GEN AMD RYZEN WITH RADEON GRAPHICS ( DDR4 ): 4733MHZ OC / 4600MHZ OC / 4400MHZ OC / 4000MHZ OC / 3600MHZ OC / 3333MHZ OC / 3200MHZ / 2933MHZ / 2667MHZ / 2400MHZ / 2133MHZ
MEMORY TYPE WHEN USING 2ND GEN AMD RYZEN / AMD RYZEN WITH RADEON VEGA GRAPHICS ( DDR4 ): 3200MHZ OC / 2933MHZ / 2667MHZ / 2400MHZ / 2133MHZ
ERROR CORRECTION CODE: YES ( SUPPORTS EDIMM 1RX8 / 2RX8 OR UDIMM 1RX8 / 2RX8 / 1RX16 )
ADDITIONAL SUPPORTED MEMORY: SUPPORTS EXTREME MEMORY PROFILE ( XMP ) MEMORY MODULES
LAN
-INTEL GBE LAN CHIP ( 10 / 100 / 1000 MBIT )
STORAGE DETAIL
NUMBER OF M.2 INTERFACES: X2 M.2 M KEY INTERFACES ( X1 WITH THERMAL GUARD )
INTERFACES ( THROUGH CPU PROTOCOLS ): X1 2242 / 2260 / 2280 / 22110 SATA AND PCIE 4.0 X4 X2 ( SPEEDS VARIES BY CPU )
INTERFACES ( THROUGH CHIPSET PROTOCOL ): X1 2242 / 2260 / 2280 / 22110 SATA AND PCIE 3.0 X4 X2
STORAGE CONNECTORS: X6 SATA 6GB/S
RAID SUPPORT: RAID 0, RAID 1, RAID 10
SLOT DETAIL
INTERFACES: X3 PCI SLOTS
INTERFACE TYPE: X1 AT PCI-E 4.0 X16 / X2 AT PCI-E 4.0 X1 ( SPEEDS VARIES BY CPU - CHIPSET SPEEDS RUNS AT PCI-E 3.0 )
MULTI GRAPHICS DETAIL SUPPORT
-SUPPORTS AMD QUAD GPU CROSS FIRE AND 2-WAY AMD CROSSFIRE TECHONOLOGIES
( COMPATIBLE WITH 3RD GEN AMD RYZEN / 2ND GEN AMD RYZEN PROCESSORS ONLY )
ADDITIONAL INFORMATION
FORM FACTOR: ATX ( ADVANCED TECHNOLOGY EXTENDED 30.5 CM X 24.4 CM )
OPERATING SYSTEMS SUPPORTED: MICROSOFT WINDOWS 10 64 BIT
