Product Details:

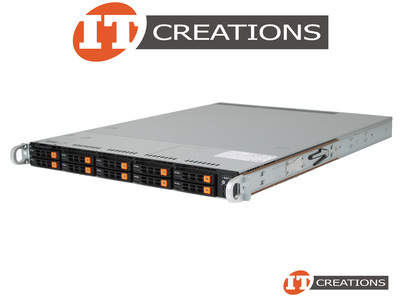

SUPERMICRO A+ SERVER AS-1114S-WN10RT RACK 2.5 INCH SFF 10 BAY HYBRID HSHD HSPS PRE CONFIGURATION 1U WIO SERVER CHASSIS NEW ( CSE-116 / CSE-116TS-R706WBP5-N10 ) - SUPER H12SSW-NTR MOBO ( 1 ) ONE SP3 SOCKET ( COMPATIBLE WITH 3RD GEN / 2ND AMD EPYC PROCESSORS - MILAN 7003 SERIES / ROME 7002 SERIES ) ( 16 ) SIXTEEN DDR4 DIMM SLOTS ( 2 ) TWO 10GBASE-T LAN PORTS ( BROADCOM BCM57416 ) UP TO ( 3 ) THREE PCI-E 4.0 INTERFACES ( 2X16 FHHL + 1X16 HH ) - SMALL FORM FACTOR 10B / 10SFF ( SUPPORTS PCIE NVME U.2 SSD ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: SUPERMICRO
PART NUMBER: AS-1114S-WN10RT-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 1U CHASSIS ( 1 ) ONE CPU HEATSINK ( 2 ) TWO 750W POWER SUPPLIES ( 1 ) ONE RACKMOUNT RAIL ASSEMBLY
NOTE:
- THIS PRE CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSORS ( MILAN 7003 SERIES ) / 2ND AMD EPYC PROCESSORS ( ROME 7002 SERIES )
PROCESSOR CORES: UP TO 64 CORE
PROCESSOR TDP: UP TO 280W
NOTE:
- NO PROCESSOR INCLUDED WITH THIS CONFIGURATION
- PROCESSOR MODEL MAY AFFECT RAM SPEED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DIMM SLOTS
MEMORY MAX CAPACITY: 4TB
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / LRDIMM
MEMORY CHANNELS: 2DPC
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS MAY BE DEPENDENT ON PROCESSOR MODEL )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 10 ) TEN 2.5 INCH SFF HOT SWAP HARD DRIVES
STORAGE TYPE: SSD / HDD
STORAGE PROTOCOL SUPPORT: PCIE 3.0 NVME / SAS ( 12GB/S ) / SATA ( 6GB/S )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO PCIE 4.0 X2 NVME M.2 INTERFACES ( 22110 / 2280 )
NOTE:
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- SAS DRIVES REQUIRE AN ADD ON CARD
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 3 ) THREE PCI-E INTERFACES
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY
- 2X16 FHHL
- 1X16 HH
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 10GBASE-T LAN PORTS ( BROADCOM BCM57416 )
- ( 1 ) ONE BMC LAN PORT
POWER SUPPLY
- ( 2 ) TWO 750W POWER SUPPLIES
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2022 ( MILAN ONLY )
- MICROSOFT WINDOWS SERVER 2019
- MICROSOFT WINDOWS SERVER 2016 ( ROME ONLY )
- RED HAT ENTERPRISE LINUX 8.3 ( MILAN ONLY )
- RED HAT ENTERPRISE LINUX 8.1
- SUSE LINUX ENTERPRISE SERVER 15 SP2 ( MILAN ONLY )
- SUSE LINUX ENTERPRISE SERVER 15 SP1
- UBUNTU 18.04 LTS ( ROME ONLY )
- CITRIX HYPERVISOR 8.2
- HYPERVISOR 8.2 ( MILAN ONLY )
- HYPERVISOR 8.1 ( ROME ONLY )
- ESXI 8.0 ( MILAN ONLY )
- ESXI 7.0 U1
- ESXI 7.0
- ESXI 6.7 U3
- ORACLE LINUX 8.3 ( MILAN ONLY )
- ORACLE LINUX 7.7 ( ROME ONLY )
FORM FACTOR
- 1U RACKMOUNT
- 1.7 INCH H ( 43 MM ) X 17.2 INCH W ( 437MM ) X 23.5 INCH D ( 597MM )
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE PRE CONFIGURATION SUPERMICRO FACTORY RETAIL. UPGRADE OPTIONS ARE AVAILABLE. PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
