Product Details:

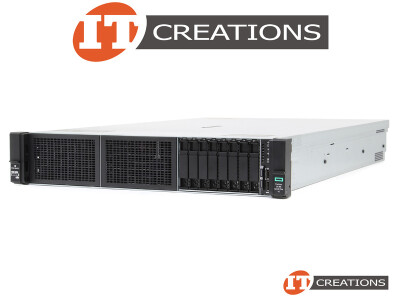

HPE PROLIANT DL385 G10 PLUS RACK 2.5 INCH SFF 8 BAY HPHD HPPS 2U SERVER CHASSIS ( GEN10P / G10+ / G10P / GEN10+ ) - ( 8B IS STANDARD - 16B AND 24B VIA OPTIONAL CAGE BAY ) SMALL FORM FACTOR 8B / 8SFF HOT PLUG HARD DRIVE HOT PLUG POWER SUPPLY
MANUFACTURER: HP
PART NUMBER: HP DL385 G10 PLUS V2 2.5
NOTE: THIS MODEL IS A 2.5 INCH SFF 8 BAY SAS / SATA STANDARD OPTION ONLY ( UP TO 24 BAY SAS, SATA, OR NVME COMPATIBLE - 16B / 24B ARE OPTIONAL - CHECK FOR AVAILABILITY ). IF YOU DESIRE A 3.5 INCH LFF ( 8 BAY OR 12 BAY CHASSIS ), PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: SP3
PROCESSOR COMPATIBILITY: 3RD GEN AND EPYC PROCESSOR FAMILY ( MILAN-X / MILAN 7003 SERIES )
PROCESSOR CORE COUNT: UP TO 64 CORES PER SOCKET
PROCESSOR TDP: UP TO 280W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS ( 16 DIMMs PER PROCESSOR )
MEMORY SIZE CAPACITY: UP TO 8TB
MEMORY SPEEDS: DDR4-3200MHZ ( AT 1DPC ) OR DDR4-2933 ( AT 2DPC ) ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 8 CHANNELS PER PROCESSOR ( 2 DIMMS PER CHANNEL )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 24 ) TWENTY FOUR 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY SAS / SATA IS STANDARD - OPTIONAL BAYS UP TO 38 DRIVES TOTAL 24+8+6 CONFIGURATION )
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS / SATA / PCIE NVME
MAX STORAGE SIZE:
- 67.2TB ( SAS HDD )
- 56TB ( SATA HDD )
- 428.4TB ( SAS SSD )
- 215TB ( SATA SSD )
- 430.08TB ( PCIE NVME SSD )
ADDITIONAL STORAGE SUPPORT: ( 4 ) FOUR 2.5 INCH SFF BAY ( REAR BAYS VIA OPTIONAL RISER ASSEMBLY )
NOTE:
- 2.5 INCH SFF 8 BAY IS STANDARD. 16B AND 24B CONFIGURATIONS ARE OPTIONAL. CHECK FOR AVAILABILITY
- UNIVERSAL MEDIA BAY IS NOT AVAILABLE WITH 24SFF CHASSIS. MEDIA BAY CAN ONLY BE POPULATED IN BOX 1
- ADDITIONAL ( 4 ) FOUR 2.5 INCH SFF BAYS VIA REAR BAY IS OPTIONAL ( POPULATES RISER SLOTS )
- IF YOU DESIRE A 3.5 INCH LFF CHASSIS, PLEASE CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 8 ) EIGHT PCI-E SLOTS ( 1 ) ONE MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES VARY
PRIMARY RISER:
- 1X8 FHFL ( X16 CONNECTOR ) + 1X16 FHFL + 1X8 FHHL ( X16 CONNECTOR ) PRIMARY RISER1 ( STANDARD )
- 2X16 FHFL PRIMARY RISER2 ( OPTIONAL )
- 3X16 ( X2 FHFL X1 FHHL ) PRIMARY RISER3 ( OPTIONAL )
SECONDARY RISER: ( OPTIONAL )
- 1X8 FHFL ( X16 CONNECTOR ) + 1X16 FHFL + 1X8 FHHL ( X16 CONNECTOR ) SECONDARY RISER1 ( OPTIONAL )
- 2X16 FHFL SECONDARY RISER2 ( OPTIONAL )
- 2X16 FHFL + 1X16 FHHL SECONDARY RISER3 ( OPTIONAL )
TERTIARY RISER: ( OPTIONAL )
- 1X16 FHFL TERTIARY RISER1 ( OPTIONAL )
- 2X8 ( X16 CONNECTORS ) FHFL TERTIARY RISER2 ( OPTIONAL )
ADDITIONAL RISER: ( ONBOARD )
- OCP 3.0 MEZZANINE SLOT
NOTE:
- SECONDARY / TERTIARY RISERS REQUIRE THE 2ND PROCESSOR CONFIGURATION
- EXPANSION SLOTS CAN BE USED FOR STORAGE OPTIONS
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 500W / 800W / 1000W / 1600W / 2200W
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED NOVEMBER 2024 - INFORMATION MAY CHANGE
