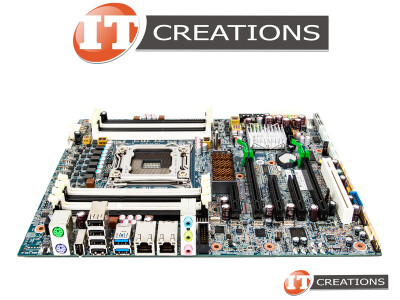

HP MOTHERBOARD (708614-001)

Product Details:

HP MOTHERBOARD FOR HP Z620 WORKSTATION - SYSTEM BOARD

MANUFACTURER: HP
PART NUMBER: 708614-001
COMPATIBILITY: HP Z620 WORKSTATION

PROCESSOR DETAIL

NUMBER OF PROCESSORS SUPPORTED: ( 1 ) ONE PROCESSOR ONBOARD ( UP TO 2 PROCESSORS VIA EXPANSION BOARD )
SOCKET TYPE: FCLGA2011
PROCESSOR TYPE: INTEL XEON E5-1600 / INTEL XEON E5-1600V2 / INTEL XEON E5-2600 / INTEL XEON E5-2600V2 PROCESSOR FAMILY
ADDITIONAL PROCESSOR INFORMATION: INTEL XEON E5-1600 AND E5-1600V2 DOES NOT SUPPORT 2ND PROCESSOR

MEMORY DETAIL

NUMBER OF MEMORY SLOTS: 8 TOTAL ONBOARD MEMORY SLOTS ( 12 TOTAL MEMORY SLOTS VIA CPU / MEMORY EXPANSION BOARD )
MEMORY TYPE: UP TO DDR3-1600
MEMORY SIZE CAPACITY: UP TO 192GB ( WITH 2 PROCESSORS )

PCI INTERFACE DETAIL

NUMBER OF PCI SLOTS: 6 INTERFACES

- SLOT1 PCI-E 2.0 X4 ( FULL HEIGHT / HALF LENGTH - NOT AVAILABLE WHEN 2ND CPU EXPANSION BOARD IS INSTALLED )
- SLOT2 PCI-E 2.0 X16 ( FULL HEIGHT / FULL LENGTH - WITH EXTENDER )
- SLOT3 PCI-E 2.0 X4 ( OPEN CONNECTOR ) ( X8 WIRED - FULL HEIGHT / FULL LENGTH - WITH EXTENDER )
- SLOT4 PCI-E 2.0 X8 ( OPEN CONNECTOR ) ( FULL HEIGHT / FULL LENGTH - WITH EXTENDER )
- SLOT5 PCI-E 2.0 X16
- SLOT6 PCI 32 BIT / 33MHZ ( FULL HEIGHT / FULL LENGTH - WITH EXTENDER )
