Product Details:

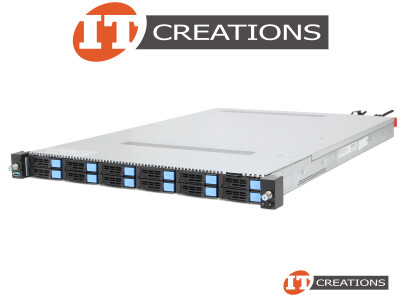

MITAC TYAN TRANSPORT CX GC68A-B8036 1U1S RACK 2.5 INCH SFF 12 BAY PCIE NVME U.2 HSHD HSPS PRE CONFIGURATION 1U SERVER CHASSIS ( GC68AB8036 ) - COMPATIBLE WITH ( 1 ) ONE SP3 SOCKET ( 3RD GEN / 2ND GEN AMD EPYC PROCESSORS - MILAN / MILAN-X 7003 SERIES / ROME 7002 SERIES ) ( 16 ) SIXTEEN DDR4 DIMM SLOTS ( 2 ) TWO 1GBE LAN PORTS ( BROADCOM BCM5720 ) ( 1 ) ONE 1GBE DEDICATED FOR IPMI UP TO ( 2 ) TWO PCI-E 4.0 INTERFACES ( 1X16 FHHL + 1X16 HHHL ) ( 1 ) ONE OCP 3.0 MEZZANINE SLOT ( BANDWIDTH PCI-E 4.0 X16 ) - ( 2 ) TWO M.2 PCI-E 3.0 NVME ( 22110 / 2280 FOR BOOT DRIVES ) + SMALL FORM FACTOR 12B / 12SFF ( SUPPORTS OPTIONAL X4 SATA 6GB/S ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY ( X2 800W )
MANUFACTURER: MITAC
PART NUMBER: B8036G68AE12HR-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 1U CHASSIS ( 1 ) ONE HEATSINK ( 2 ) TWO 800W HOT SWAP POWER SUPPLIES ( 1 ) ONE RACK MOUNT RAIL KIT ASSEMBLY
NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSORS ( MILAN 7003 SERIES ) / 2ND GEN AMD EPYC PROCESSORS ( ROME 7002 SERIES )
PROCESSOR TDP: UP TO 240W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DIMM SLOTS
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
RDIMM MEMORY SIZE: UP TO 2048GB
LRDIMM MEMORY SIZE: UP TO 4096GB
RDIMM 3DS / LRDIMM 3DS MEMORY SIZE: UP TO 4096GB
MEMORY SPEEDS: UP TO 3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS ( PER CPU )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: UP TO ( 12 ) TWELVE 2.5 INCH SFF HSHD HDD / SSD ( PCIE NVME U.2 W/ OPTIONAL 4 SATA )
ADDITIONAL STORAGE SUPPORT: UP TO ( 2 ) TWO M.2 PCI-E 3.0 NVME ( 22110 / 2280 FOR BOOT DRIVES )
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S ) / SAS ( 12GB/S ) / PCIE NVME
NOTE:
- SAS DRIVES SUPPORTED VIA HBA / RAID ADAPTER. NOT INCLUDED WITH THIS CONFIGURATION
- M.2 SUPPORTS PCIE NVME AND SATA ONLY FOR BOOT DRIVES
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 2 ) TWO PCI-E INTERFACES ( 1 ) ONE MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY
- 2X16 ( 1 FHHL + 1 HHHL )
- 1X16 OCP 3.0 MEZZ SLOT
NOTE:
- GPUs, CONTROLLERS, HBAs AND NETWORK CARDS ARE NOT INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO GBE LAN PORT ( BROADCOM BCM5720 )
- ( 1 ) ONE GBE DEDICATED FOR IPMI
POWER SUPPLY
- ( 2 ) TWO 800W POWER SUPPLIES ( HSPS / RPSU )
OPERATING SYSTEMS SUPPORTED
- WINDOWS SERVER 2019
- WINDOWS SERVER 2022
- LINUX RHEL 7.6 X64
- LINUX RHEL 7.7 X64
- LINUX RHEL 8.0 X64
- LINUX RHEL 9 X64
- LINUX UBUNTU DESKTOP 19.04 X64
- LINUX UBUNTU 20.04.4 LTS
- LINUX CENTOS 7.6 X64
- LINUX CENTOS 7.7 X64
- LINUX CENTOS STREAM 9
FORM FACTOR
- 1U RACKMOUNT
- 26.77 INCH X 17.26 INCH X 1.69 INCH
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON MITAC COMPUTING TECHNICAL GUIDE DOCUMENTATION DATED MARCH 2021 - INFORMATION MAY CHANGE
