DELL EMC POWEREDGE R540 3.5 INCH LFF 8 BAY HPHD HPPS 2U RACK SERVER CHASSIS (DELL R540 3.5 8B HPPS)

Part Number: DELL R540 3.5 8B HPPS

Condition: Used

Availability: ETA 3-4 days

Request Pricing
as of 08/12/2025 04:45:31 PM PDT

IT Creations difference:

Free shipping on orders over $99.00*
Product Details:

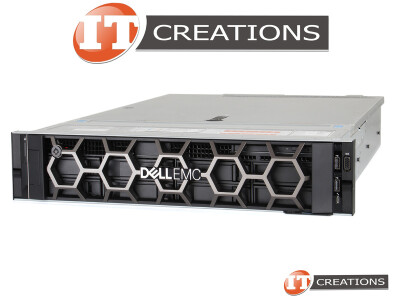

DELL EMC POWEREDGE R540 3.5 INCH LARGE FORM FACTOR LFF 8 BAY HOT PLUG HARD DRIVE HPHD HOT PLUG POWER SUPPLY HPPS 2U RACK SERVER CHASSIS

MANUFACTURER: DELL
PART NUMBER: DELL R540 3.5 8B HPPS

NOTE: THIS MODEL IS A STANDARD OPTION ONLY, IT DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS

PROCESSOR SUPPORT

MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA3647 ( SOCKET P )
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR SERIES / 1ST GEN INTEL XEON SCALABLE PROCESSOR SERIES
PROCESSOR CORES: UP TO 20 CORES PER PROCESSOR

MEMORY SUPPORT

MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DIMM SLOTS RDIMM OR LRDIMM
MEMORY SIZE: UP TO 512GB ECC RDIMM / 1TB LRDIMM
MEMORY SPEEDS: DDR4-2666MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR TYPE )
MEMORY CHANNELS: UP TO 6 CHANNELS ( PER CPU )

STORAGE SUPPORT

HARD DRIVE SUPPORT: UP TO ( 8 ) EIGHT 3.5 INCH LFF HOT PLUG HARD DRIVES
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO M.2 SSD VIA PCIE BOSS CARD
STORAGE TYPE: HDD / SDD / M.2
STORAGE PROTOCOL: SAS / SATA
FRONT BAYS MAX STORAGE SIZE: 112TB
M.2 VIA BOOT MAX STORAGE SIZE: 2 X 240GB OR 2 X 480GB

-NOTE: M.2 PCIE BOSS CARD IS OPTIONAL - 2.5 INCH SFF DRIVES COMPATIBLE VIA HYBRID CARRIER ADAPTER, NOT INCLUDED - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

EXPANSION SLOT SUPPORT

NUMBER OF PCI SLOTS SUPPORT: UP TO ( 5 ) FIVE PCI-E 3.0 SLOTS ( X1 FHFL / 1X FHHL / X3 HHHL )
PCI INTERFACE TYPE: TYPES VARY BASED ON CONFIGURATION DESIRED

-NOTE: WHEN 1 PROCESSOR IS FUNCTIONAL, ONLY THE RIGHT RISER IS ACTIVE - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

POWER SUPPORT

NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
MAX POWER IN WATTAGE: 1100W ( PER POWER SUPPLY )

OPERATING SYSTEMS SUPPORTED

- CANONICAL UBUNTU LTS
- CITRIX XENSERVER
- MICROSOFT WINDOWS SERVER WITH HYPER-V
- RED HAT ENTERPRISE LINUX
- SUSE LINUX ENTERPRISE SERVER
- VMWARE ESXI
