Product Details:

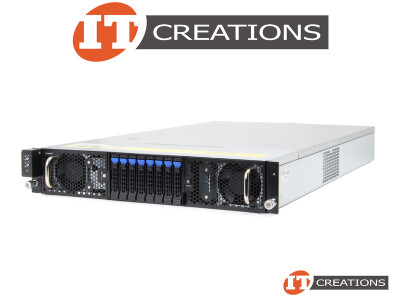

GIGABYTE G292-Z45 REV.A00 RACK 2.5 INCH SFF 8 BAY HSHD HSPS 8 X GEN4 GPU PRE CONFIGURATION 2U SERVER CHASSIS ( G292Z45 ) ( HPC / AI / AI TRAINING / AI INFERENCE ) - SMALL FORM FACTOR 8B / 8SFF HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: GIGABYTE
PART NUMBER: 6NG292Z45MR-00-A00-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 2U CHASSIS ( 2 ) TWO HEATSINKS ( 2 ) TWO 2200W HOT SWAP POWER SUPPLIES ( 1 ) ONE RACK MOUNT RAIL KIT ASSEMBLY
NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3 SOCKETS
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 2 ) TWO CPUs
PROCESSOR COMPATIBILITY: 3RD GEN / AMD EPYC PROCESSORS ( MILAN 7003 SERIES ) / 2ND GEN AMD EPYC PROCESSORS ( ROME 7002 SERIES )
PROCESSOR TDP: UP TO 400W
NOTE:
- OPTIONAL HEATSINK REQUIRED WHEN USING 500W PROCESSORS
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DIMM SLOTS
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / LRDIMM
MEMORY SPEEDS: UP TO 3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS ( PER CPU )
NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: UP TO ( 8 ) EIGHT 2.5 INCH SFF HOT SWAP HARD DRIVE
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL: SAS3 ( 12GB/S ) / SATA3 ( 6GB/S )
NOTE:
- SAS DRIVES SUPPORTED VIA HBA / RAID ADAPTER. NOT INCLUDED WITH THIS CONFIGURATION
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 10 ) TEN PCI-E INTERFACE
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY
- 8X16 FHFL ( FOR GPUs )
- 1X16 + 1X8 HH ( FOR AIC )
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 1GBE LAN PORT ( INTEL I350-AM2 )
- ( 1 ) ONE GBE DEDICATED FOR IPMI
POWER SUPPLY
- ( 2 ) TWO 2200W POWER SUPPLIES ( 80 PLUS PLATINUM REDUNDANT )
FORM FACTOR
- 2U RACKMOUNT
- 448 MM X 87.5 MM X 800 MM
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON GIGABYTE TECHNICAL GUIDE DOCUMENTATION DATED JANUARY 2022 - INFORMATION MAY CHANGE
