Product Details:

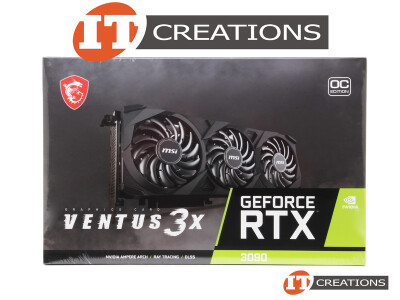

MSI NVIDIA GEFORCE RTX 3090 VENTUS 3X 24G OC GPU 24GB 10496 CUDA CORES MEMORY INTERFACE 384 BIT GDDR6X MEMORY BANDWIDTH 936GB/S PCI-E 4.0 X16 ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI GRAPHICS PROCESSING UNIT VIDEO CARD - AMPERE ARCHITECTURE
MANUFACTURER: MSI / NVIDIA
PART NUMBER: 912-V388-055-RETAIL
INCLUDES: MSI NVIDIA GEFORCE RTX 3090 GAMING X TRIO 24G GPU WITH QUICK INSTALLATION GUIDE - NO CABLES INCLUDED
ENGINE SPECS:
ENGINE ARCHITECTURE: AMPERE
CUDA CORES: 10,496
RAY TRACING CORES: 2ND GEN
TENSOR CORES: 3RD GEN
GPU CLOCK: 1395 MHZ
BOOST CLOCK: 1725 MHZ
MEMORY:
MEMORY CONFIGURATION: 24GB
MEMORY INTERFACE: GDDR6X
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 936 GB/S
MEMORY SPEED: 19.5 GB/S
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
SUPPORTED TECHNOLOGIES: 2ND GEN RT CORES, 3RD GEN TENSOR CORES, TRIPLE FAN THERMAL DESIGN: TORX FAN 3.0, ZERO FROZR, THERMAL PADDING, CORE PIPE, METAL BACKPLATE WITH HEATPIPES, CUSTOM PCB, DRAGON CENTER SOFTWARE, DIRECTX 12 API, OPENGL 4.6, MULTI GPU TECHNOLOGY, VR READY, G-SYNC TECHNOLOGY, ADAPTIVE VERTICAL SYNC, PCI EXPRESS GEN4
OPERATING SYSTEM SUPPORT: WINDOWS 7, WINDOWS 10, WINDOWS 11
DISPLAY SUPPORT:
MAXIMUM DISPLAY RESOLUTION: 7680 X 4320 AT 60HZ
MULTI MONITOR: YES ( UP TO 4 MONITORS )
HDCP: 2.2
CONNECTIONS:
DISPLAY CONNECTORS: ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI ( SUPPORTS 4K AT 120HZ )
POWER CONNECTORS: ( 2 ) TWO 8 PIN POWER CONNECTORS
ADDITIONAL CONNECTORS: ( 1 ) ONE NVLINK INTERFACE
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 350W
MAX GPU TEMPERATURE ( IN C ): 93
RECOMMENDED SYSTEM POWER ( W ): 750W
COOLING SYSTEM:
ACTIVE - ( 3 ) THREE ACTIVE FANS ( VENTUS 3X FANSINK )
FORM FACTOR:
THREE SLOT, FULL HEIGHT
DIMENSION:
305MM X 120MM X 57MM
