Product Details:

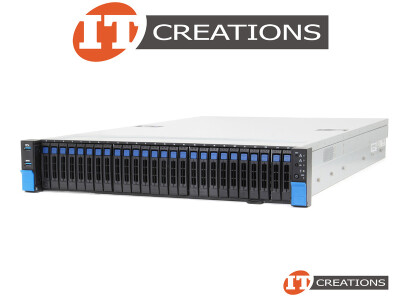

MITAC TYAN TRANSPORT HX TS75A-B8252 2U2S RACK 2.5 INCH SFF 26 BAY HSHD HSPS PRE CONFIGURATION 2U HPC SERVER CHASSIS ( TS75AB8252 ) - ( 2 ) TWO SP3 SOCKETS ( COMPATIBLE WITH 3RD GEN / 2ND GEN AMD EPYC PROCESSORS - MILAN / MILAN-X 7003 SERIES / ROME 7002 SERIES ) ( 32 ) THIRTY TWO DDR4 DIMM SLOTS ( 2 ) TWO 10GBE LAN PORTS ( INTEL X550-AT2 ) ( 1 ) ONE 1GBE DEDICATED FOR IPMI UP TO ( 5 ) FIVE PCI-E 4.0 INTERFACE ( 2X16 FHFL + 2X16 FHHL + 1X8 FHHL ) ( 1 ) ONE OCP 3.0 MEZZANINE SLOT ( BANDWIDTH PCI-E 4.0 X16 ) - ( 2 ) TWO M.2 PCIE 4.0 NVME + SMALL FORM FACTOR 26B / 26SFF HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY ( 2X1200W )
MANUFACTURER: MITAC
PART NUMBER: B8252T75V26HR-2T-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 2U CHASSIS ( 2 ) TWO HEATSINKS ( 2 ) TWO 1600W POWER SUPPLIES ( 1 ) ONE RACK MOUNT RAIL KIT ASSEMBLY
NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3 SOCKETS
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 2 ) TWO CPUs
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSOR FAMILY WITH 3D V-CACHE ( MILAN / MILAN-X 7003 SERIES ) / 2ND GEN AMD EPYC PROCESSOR FAMILY ( ROME 7002 SERIES )
PROCESSOR TDP: UP TO 280W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
MEMORY SIZE: UP TO 8TB
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS ( PER CPU )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: UP TO ( 26 ) TWENTY SIX 2.5 INCH SFF HOT SWAP HARD DRIVE
ADDITIONAL STORAGE SUPPORT: UP TO ( 2 ) TWO M.2 INTERFACES ( 22110 / 2280 )
STORAGE TYPE: HDD / SSD / M.2
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S ) / SAS ( 12GB/S ) / PCIE NVME ( M.2 ONLY )
NOTE:
- FRONT BAYS DO NOT SUPPORT PCIE NVME
- SAS DRIVES SUPPORTED VIA HBA / RAID ADAPTER. NOT INCLUDED WITH THIS CONFIGURATION
- M.2 SUPPORTS PCIE NVME AND SATA ONLY
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF SLOTS SUPPORT: UP TO ( 5 ) FIVE INTERFACES
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY
- 2X16 FULL HEIGHT, 10.5 INCH L
- 1X8 FULL HEIGHT, HALF LENGTH
- 2X16 HALF HEIGHT, HALF LENGTH
ADDITIONAL INTERFACE TYPE: ( 1 ) ONE OCP 3.0 MEZZANINE SLOT ( PCI-E 4.0 X16 BANDWIDTH )
NOTE:
- GPUs, CONTROLLERS, HBAs AND NETWORK CARDS ARE NOT INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 10GBE LAN PORTS ( INTEL X550-AT2 )
- ( 1 ) ONE 1GBE DEDICATED FOR IPMI
POWER SUPPLY
- ( 2 ) TWO 1200W POWER SUPPLIES ( HSPS / RPSU )
OPERATING SYSTEMS SUPPORTED
- WINDOWS SERVER 2022
- WINDOWS SERVER 2019
- RHEL 9
- RHEL 8.0
- RHEL 7.6
- RED HAT 8.4
- CENTOS STREAM 9
- CENTOS 8.5
- CENTOS 8.4
- CENTOS 8.1
- CENTOS 8.0
- CENTOS 7.6
- UBUNTUS 20.04.4 LTS
- UBUNTUS 18.04
FORM FACTOR
- 2U RACKMOUNT
- 29.56 INCH X 17.26 INCH X 3.43 INCH
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON MITAC TECHNICAL GUIDE DOCUMENTATION DATED AUGUST 2017 - INFORMATION MAY CHANGE
