Product Details:

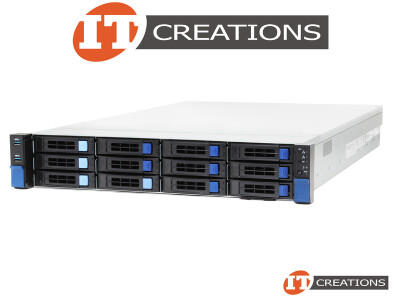

MITAC / TYAN THUNDER HX TS75-B7122 2U2S RACK 3.5 INCH LFF 12 BAY HSHD HSPS HPC / VM PRE CONFIGURATION 2U SERVER CHASSIS ( TS75B7122 ) - ( 2 ) TWO PCIE NVME M.2 ( 22110 / 2280 ) + LARGE FORM FACTOR 12B / 12LFF ( ALSO COMPATIBLE WITH 2.5 INCH SFF DRIVES / SUPPORTS OPTIONAL X4 PCIE NVME U.2 ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY ( X2 1600W PS )
MANUFACTURER: MITAC
PART NUMBER: B7122T75V8E4HR-2T-N-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 2U CHASSIS ( 2 ) TWO HEATSINKS ( 2 ) TWO 1600W HOT SWAP POWER SUPPLIES ( 1 ) ONE RACK MOUNT RAIL KIT ASSEMBLY
NOTE: THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: FCLGA4189
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 2 ) TWO CPUs
PROCESSOR COMPATIBILITY: 3RD GEN INTEL XEON SCALABLE PROCESSORS ( ICE LAKE )
PROCESSOR TDP: UP TO 270W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
RDIMM MEMORY SIZE: UP TO 4096GB
LRDIMM MEMORY SIZE: UP TO 8192GB
RDIMM 3DS / LRDIMM 3DS MEMORY SIZE: UP TO 8192GB
MEMORY SPEEDS: UP TO 3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: UP TO ( 12 ) TWELVE 3.5 INCH LFF HSHD HDD / SSD ( SATA OR SAS WITH OPTIONAL X4 PCIE NVME )
ADDITIONAL STORAGE SUPPORT: UP TO ( 2 ) TWO M.2 INTERFACES ( 22110 / 2280 )
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S ) / SAS ( 12GB/S ) / PCIE NVME
NOTE:
- M.2 SUPPORTS PCIE NVME AND SATA ONLY
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 5 ) FIVE PCIE SLOTS
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY
- 3X16 FHFL
- 1X16 HHHL
- 1X8 HHHL
ADDITIONAL INTERFACES: ( 1 ) ONE OCP 3.0 MEZZANINE SLOT ( PCI-E 4.0 X16 BANDWIDTH )
NOTE:
- GPUs, CONTROLLERS, HBAs AND NETWORK CARDS ARE NOT INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 10GBE LAN PORT ( INTEL X550-AT2 )
- ( 1 ) ONE GBE DEDICATED FOR IPMI
POWER SUPPLY
- ( 2 ) TWO 1600W POWER SUPPLIES ( HSPS / RPSU )
OPERATING SYSTEMS SUPPORTED
- MICROSOFT WINDOWS SERVER 2019
- LINUX RHEL 8.3 X64
- LINUX CENTOS 8.3 X64
FORM FACTOR
- 2U RACKMOUNT
- 29.56 INCH X 17.26 INCH X 3.43 INCH
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON MITAC COMPUTING TECHNICAL GUIDE DOCUMENTATION DATED DECEMBER 2021 - INFORMATION MAY CHANGE
