Product Details:
PNY NVIDIA RTX A4000 GPU 16GB 6144 CUDA CORES MEMORY INTERFACE 256 BIT GDDR6 MEMORY BANDWIDTH 448GB/S PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - AMPERE ARCHITECTURE
MANUFACTURER: NVIDIA
PART NUMBER: NVIDIA RTX A4000-PNY-RETAIL

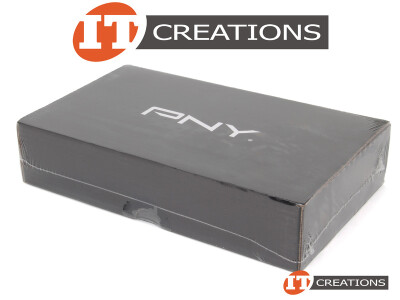

CONTENT INCLUDES: ( 1 ) ONE NVIDIA RTX A4000 GPU ( 1 ) ONE DP TO SL DVI-D CABLE ADAPTER ( 1 ) ONE AUX POWER CABLE
ENGINE SPECS:
ENGINE ARCHITECTURE: AMPERE
CUDA CORES: 6144
3RD GEN TENSORE CORES: 192
2ND GEN RT CORES: 48
SINGLE PRECISION PERFORMANCE: 19.2 TFLOPS
RT CORE PERFORMANCE: 37.4 TFLOPS
TENSOR PERFORMANCE: 153.4 TFLOPS
GPU CLOCK: 735 MHZ
BOOST CLOCK: 1560 MHZ
PROCESS SIZE: 8NM
TRANSISTORS: 17.4 BILLION
DIE SIZE: 392 MM SQUARE
MEMORY:
MEMORY CONFIGURATION: 16GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 448 GB/S
MEMORY CLOCK: 14 GB/S
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
SUPPORTED TECHNOLOGIES: NVIDIA AMPERE TECHNOLOGY, CUDA CORES TECHNOLOGY, 2ND GEN RT CORES, 3RD GEN TENSOR CORES, HIGHER SPEED GDDR6 MEMORY, DIRECTX 12.07, SHADER MODEL 5.17, OPENGL 4.68, VULKAN 1.2, DIRECTCOMPUTE, OPENCL, AV1 DECODE SUPPORT, DISPLAYPORT WITH AUDIO, 3D STEREO SUPPORT WITH STEREO CONNECTOR, NVIDIA GPUDIRECT FOR VIDEO SUPPORT, NVIDIA QUADRO SYNC II COMPATIBILITY, NVIDIA RTX EXPERIENCE, NVIDIA RTX DESKTOP MANAGER, NVIDIA RTX IO SUPPORT, HDCP 2.2 SUPPORT, NVIDIA MOSAIC TECHNOLOGY, VR READY, PCI EXPRESS GEN4
ERROR CORRECTION CODE ( ECC ): YES
OPERATING SYSTEM: MICROSOFT WINDOWS 10 64 BIT / LINUX 64 BIT
DISPLAY SUPPORT:
DISPLAY RESOLUTION: 7680 X 4320 AT 60HZ ( 2 DISPLAYS ) OR 5120 X 2880 AT 60HZ ( 4 DISPLAYS ) OR 4096 X 2160 AT 120HZ ( 4 DISPLAYS )
MULTI MONITOR: YES, UP TO 4 DISPLAYS
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE 6 PIN CONNECTOR
ADDITIONAL CONNECTORS: ( 1 ) ONE 14 PIN SYNC CONNECTOR ( 1 ) ONE 4 PIN STEREO CONNECTOR
THERMAL AND POWER SPECS:
TOTAL BOARD CONSUMPTION ( W ): 140W
SYSTEM REQUIREMENTS:
RECOMMENDED PSU ( W ): 300W
COOLING SYSTEM:
ACTIVE - ( 1 ) ONE ACTIVE FANSINK ( SINGLE FAN BLOWER )
FORM FACTOR:
SINGLE SLOT
DIMENSIONS:
4.4 INCH ( H ) X 9.5 INCH ( L )
