Product Details:

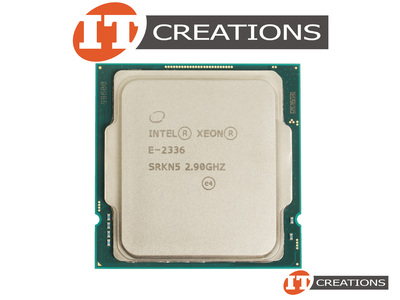

INTEL XEON 6 CORE PROCESSOR E-2336 2.90GHZ BASE / 4.80GHZ MAX 12MB SMART CACHE 8 GT/S BUS SPEED 65W FCLGA1200 ( ROCKET LAKE )
MANUFACTURER: INTEL
PART NUMBER: E-2336
CPU SERIES: INTEL XEON E PROCESSOR FAMILY
PROCESSOR CODE NAME: ROCKET LAKE
SOCKETS SUPPORTED: FCLGA1200
MAX CPU CONFIGURATION: 1
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 2.90GHZ
CPU MAX TURBO FREQUENCY: 4.80GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.80GHZ
MULTI-CORE: SIX-CORE ( 6 CORE )
THREADS: 12
CACHE: 12MB INTEL SMART CACHE
INTEL UPI SPEED: 8 GT/S
LITHOGRAPHY: 14NM
THERMAL DESIGN POWER: 65W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 128GB
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 3200 MHZ
MAX NUM. MEMORY CHANNELS: 2
ECC MEMORY SUPPORTED: YES
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESS REVISION: 4.0
PCI EXPRESS CONFIGURATIONS: 1X16 + 1X4 / 2X8 + 1X4 / 1X8 + 3X4
MAX NUM. OF PCI LANES: 20
ADVANCED TECHNOLOGIES
INTEL OPTANE PERSISTENT MEMORY SUPPORTED: NO
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): NO
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1 / INTEL SSE4.2 / INTEL AVX2 / INTEL AVX-512
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
SECURITY & RELIABILITY
INTEL VPRO ELIGIBILITY: INTEL VPRO PLATFORM
INTEL AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
DEFAULT MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 0.5 GB
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
