Product Details:

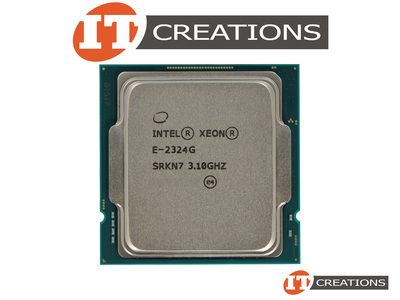

INTEL XEON QUAD CORE PROCESSOR E-2324G 3.10GHZ BASE / 4.60GHZ MAX 8MB SMART CACHE 8 GT/S BUS SPEED 65W FCLGA1200 ( ROCKET LAKE )
MANUFACTURER: INTEL
PART NUMBER: SRKN7
CPU SERIES: INTEL XEON E PROCESSOR FAMILY
PROCESSOR CODE NAME: ROCKET LAKE
SOCKETS SUPPORTED: FCLGA1200 ( SOCKET H5 )
MAX CPU CONFIGURATION: 1
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 3.10GHZ
CPU MAX TURBO FREQUENCY: 4.60GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.60GHZ
MULTI-CORE: QUAD-CORE ( 4 CORE )
THREADS: 4
CACHE: 8MB INTEL SMART CACHE
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14NM
THERMAL DESIGN POWER: 65W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
USE CONDITIONS: SERVER / ENTERPRISE
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 128GB
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 3200 MHZ
MAX NUM. MEMORY CHANNELS: 2
INTEL OPTANE PERSISTENT MEMORY SUPPORTED: NO
ECC MEMORY SUPPORTED: YES
PROCESSOR GRAPHICS SPECS
PROCESSOR GRAPHICS: INTEL UHD GRAPHICS P750
GRAPHICS BASE FREQUENCY: 350 MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.30 MHZ
GRAPHICS VIDEO MAX MEMORY: 64GB
4K SUPPORT: YES, AT 60HZ
MAX RESOLUTION ( HDMI ): 4096 X 2160 AT 60HZ
MAX RESOLUTION ( DP ): 5120 X 3200 AT 60HZ
MAX RESOLUTION ( EDP - INTEGRATED FLAT PANEL): 5120 X 3200 AT 60HZ
MAX RESOLUTION ( VGA ): N/A
DIRECTX SUPPORT: 12.1
OPENGL SUPPORT: 4.5
INTEL QUICK SYNC VIDEO: YES
INTEL INTRU 3D TECHNOLOGY: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
INTEL CLEAR VIDEO TECHNOLOGY: YES
NUMBER OF DISPLAYS SUPPORTED: 1
DEVICE ID: 0X4C9A
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESS REVISION: 4.0
PCI EXPRESS CONFIGURATIONS: 1X16+1X4 / 2X8+1X4 / 1X8+3X4
MAX NUM. OF PCI LANES: 20
ADVANCED TECHNOLOGIES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: NO
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): NO
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1 / INTEL SSE4.2 / INTEL AVX2 / INTEL AVX-512
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
SECURITY & RELIABILITY
INTEL VPRO PLATFORM ELIGIBILITY: INTEL VPRO PLATFORM
INTEL AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
DEFAULT MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX ): 0.5GB
INTEL MEMORY PROTECTION EXTENSIONS ( INTEL MPX ): YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECT I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
