Product Details:

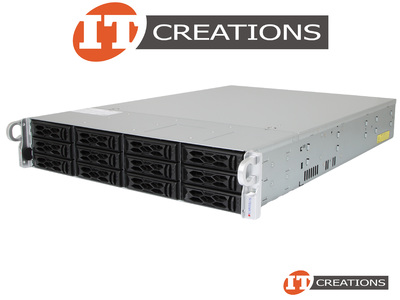

SUPERMICRO MAINSTREAM A+ SERVER 2014S-TR RACK 3.5 INCH LFF 12 BAY HSHD HSPS PRE CONFIGURATION 2U SERVER CHASSIS ( CSE-LA26TS - AS-2014S-TR ) - SUPER H12SSL-I MOBO ( 1 ) ONE SP3 CPU SOCKETS ( COMPATIBLE WITH 3RD GEN / 2ND GEN AMD EPYC PROCESSORS - MILAN 7003 SERIES / ROME 7002 SERIES ) ( 8 ) EIGHT DDR4 DIMM SLOTS ( 2 ) TWO 1GBE RJ45 LAN PORTS ( 1 ) ONE 1GB/S RJ-45 DEDICATED BMC LAN PORT UP TO ( 7 ) SEVEN PCI-E 4.0 INTERFACE ( 2X16 + 2X8 HH ) - ( 2 ) TWO PCIE 4.0 X4 NVME M.2 INTERFACES + LARGE FORM FACTOR 12B / 12LFF HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: SUPERMICRO
PART NUMBER: AS-2014S-TR-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 2U CHASSIS ( 1 ) ONE CPU HEATSINK ( 2 ) TWO 920W POWER SUPPLIES ( 1 ) ONE RACKMOUNT RAIL ASSEMBLY
NOTE:
- THIS PRE CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSORS ( MILAN 7003 SERIES ) / 2ND AMD EPYC PROCESSORS ( ROME 7002 SERIES )
PROCESSOR CORES: UP TO 64 CORE
PROCESSOR TDP: UP TO 280W
NOTE:
- NO PROCESSOR INCLUDED WITH THIS CONFIGURATION
- PROCESSOR MODEL MAY AFFECT RAM SPEED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 8 ) EIGHT DIMM SLOTS
MEMORY MAX CAPACITY: 2TB
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / LRDIMM
MEMORY CHANNELS: 1DPC
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS MAY BE DEPENDENT ON PROCESSOR MODEL )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 12 ) TWELVE 3.5 INCH LFF HOT SWAP HARD DRIVES
STORAGE TYPE: SSD / HDD
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO PCIE 4.0 X2 NVME M.2 INTERFACES ( 22110 / 2280 )
NOTE:
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 7 ) SEVEN PCI-E INTERFACES
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY
- 5X16 HH
- 2X8 HH
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 1GBE LAN PORTS
- ( 1 ) ONE 1GBE BMC LAN PORT
POWER SUPPLY
- ( 2 ) TWO 920W POWER SUPPLIES
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2022
- MICROSOFT WINDOWS SERVER 2019
- MICROSOFT WINDOWS SERVER 2016
- RED HAT ENTERPRISE LINUX 8.3
- RED HAT ENTERPRISE LINUX 8.1
- RED HAT ENTERPRISE LINUX 7.8
- SUSE LINUX ENTERPRISE SERVER 15.1
- SUSE LINUX ENTERPRISE SERVER 12 SP5
- UBUNTU 20.04.2
- UBUNTU 20.04
- UBUNTU 18.04.3
- CITRIX HYPERVISOR 8.1
- ESXI 7.0
- CENTOS 8.3
- ORACLE LINUX 8.3
FORM FACTOR
- 2U RACKMOUNT
- 3.5 INCH H ( 89 MM ) X 17.2 INCH W ( 437MM ) X 25.5 INCH D ( 648MM )
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON DELL TECHNICAL GUIDE DOCUMENTATION DATED SEPTEMBER 2021 - INFORMATION MAY CHANGE
THE OPTIONS ABOVE ARE PRE CONFIGURATION SUPERMICRO FACTORY RETAIL. UPGRADE OPTIONS ARE AVAILABLE. PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
