Product Details:

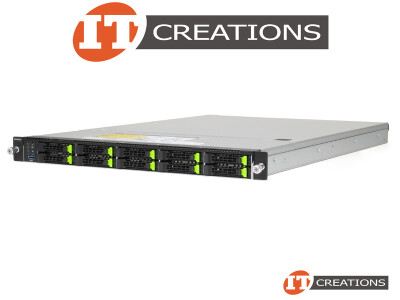

GIGABYTE R152-Z33 REV.A00 2.5 INCH SFF 10 BAY GEN4 NVME HSHD HSPS PRE CONFIGURATION 1U SERVER CHASSIS - MZ32-AR1 MOBO SUPPORTS ( 1 ) ONE SP3 SOCKET ( SUPPORTS 3RD GEN AMD EPYC PROCESSORS - 7003 SERIES / 2ND GEN AMD EPYC PROCESSORS - 7002 SERIES ) ( 16 ) SIXTEEN DDR4 DIMM SLOTS ( 2 ) TWO 1GBE LAN PORTS ( INTEL I350-AM2 ) ( 1 ) ONE 10 / 100 / 1000 MANAGEMENT LAN UP TO ( 1 ) ONE PCI-E 4.0 X16 ( 1 ) ONE OCP 2.0 MEZZANINE SLOT ( PCIE GEN4 X16 BANDWIDTH ) - ( 2 ) TWO M.2 PCI-E GEN4 X4 + SMALL FORM FACTOR 10B / 10SFF NON VOLATILE MEMORY EXPRESS HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: GIGABYTE
PART NUMBER: 6NR152Z33MR-00-A11-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 1U CHASSIS ( 1 ) ONE HEATSINK ( 2 ) TWO 1100W POWER SUPPLIES ( 1 ) ONE RACKMOUNT RAIL KIT ASSEMBLY
NOTE:
- THIS PRE CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: AMD SP3
MAX NUMBER PROCESSOR SUPPORTED: ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSOR FAMILY ( 7003 SERIES ) / 2ND GEN AMD EPYC PROCESSOR FAMILY ( 7002 SERIES )
PROCESSOR TDP: UP TO 280W
PROCESSOR CORE COUNT: UP TO 64 CORE
NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- IF ONLY 1 CPU SOCKET IS POPULATED, SOME PCIE OR MEMORY FUNCTIONS MIGHT BE UNAVAILABLE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: ( 16 ) SIXTEEN DIMM SLOTS
MEMORY SIZE: UP TO 128GB RDIMM / LRDIMM OR 256GB 3DS RDIMM / 3DS LRDIMM
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: ( 10 ) TEN 2.5 INCH SFF ( PCIE NVME )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO M.2 ( 2242 / 2260 / 2280 )
STORAGE PROTOCOL SUPPORT: PCIE NVME
NOTE:
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: ( 1 ) ONE PCI SLOT
PCI INTERFACE TYPE: ( 1 ) ONE PCI-E 4.0 X16
ADDITIONAL EXPANSION SUPPORT: ( 1 ) ONE OPEN COMPUTE PROJECT SLOT - INTERFACES VARY
- ( 1 ) ONE OCP 2.0 MEZZANINE SLOT ( PCIE GEN4 X16 BANDWIDTH )
NOTE:
- NO ADD ON CARDS INCLUDED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 1GB/S LAN PORTS ( INTEL I350-AM2 )
- ( 1 ) ONE 10 / 100 / 1000 MANAGEMENT LAN PORT
POWER SUPPLY
- ( 2 ) TWO 1100W POWER SUPPLIES ( REDUNDANT 80 PLUS PLATINUM )
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2016 ( X2APIC / 256T NOT SUPPORTED )
- MICROSOFT WINDOWS SERVER 2019
- MICROSOFT WINDOWS SERVER 2022
- RED HAT ENTERPRISE LINUX 8.3 ( X64 ) OR LATER
- RED HAT ENTERPRISE LINUX 9.0 ( X64 ) OR LATER
- SUSE LINUX ENTERPRISE SERVER 12 SP5 ( X64 ) OR LATER
- SUSE LINUX ENTERPRISE SERVER 15 SP2 ( X64 ) OR LATER
- UBUNTU 18.04.5 LTS ( X64 ) OR LATER
- UBUNTU 20.04 LTS ( X64 ) OR LATER
- UBUNTU 22.04 LTS ( X64 ) OR LATER
- VMWARE ESXI 6.7 UPDATE3 P03 OR LATER
- VMWARE ESXI 7.0 UPDATE1 OR LATER
- VMWARE ESXI 8.0 OR LATER
- CITRIX HYPERVISOR 8.2.0 OR LATER
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON GIGABYTE DOCUMENTATION DATED 2021 - INFORMATION MAY CHANGE
