Product Details:

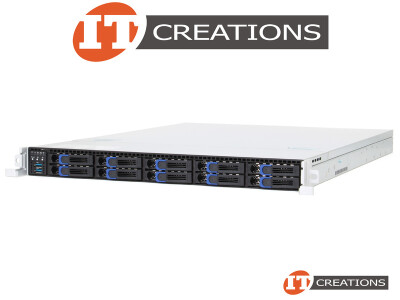

TYAN TRANSPORT SX GT62F-B8026-LE 2.5 INCH SFF 10 BAY HSHD + X2 PCIE NVME M.2 HSPS PRE CONFIGURATION 1U SERVER CHASSIS NEW ( GT62FB8026 ) - ( 1 ) ONE AMD SP3 SOCKET ( SUPPORTS 2ND GEN EPYC - 7002 SERIES / 1ST GEN EPYC - 7001 SERIES ) ( 16 ) SIXTEEN DDR4 DIMM SLOTS UP TO ( 2 ) TWO PCI-E 3.0 INTERFACES ( 2X16 / FHHL ) ( 2 ) TWO 1GBE LAN PORTS
MANUFACTURER: TYAN
PART NUMBER: B8026G62FV10HR-LE-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 1U CHASSIS ( 1 ) ONE HEATSINK ( 2 ) TWO 650W HOT SWAP POWER SUPPLIES ( 1 ) ONE RACK MOUNT RAIL KIT ASSEMBLY
NOTE: THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: FCLGA4189
MAX NUMBER PROCESSOR SUPPORTED: ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 2ND GEN AMD EPYC PROCESSOR - 7002 SERIES / 1ST GEN AMD EPYC PROCESSOR - 7001 SERIES
PROCESSOR TDP: UP TO 180W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: ( 16 ) SIXTEEN DDR4 DIMM SLOTS
MEMORY SIZE: UP TO 1024GB / 1TB ( RDIMM / LRDIMM )
MEMORY SPEEDS: UP TO DDR4 2666MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS ( PER CPU )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- LRDIMM IS NOT SUPPORTED WITH AMD EPYC 7002 SERIES
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: UP TO ( 10 ) TEN 2.5 INCH SFF HSHD HDD / SSD ( SAS / SATA )
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S ) / SAS ( 12GB/S )
NOTE:
- THIS CONFIGURATION IS A 10SFF SSD / HDD + 2 PCIE NVME M.2 ( VIA SYSTEM BOARD )
- M.2 SUPPORTS 22110 / 2280 / 2260 / 2242 ( PCIE NVME AND SATA PROTOCOL ). A TOTAL OF 2 M.2 IS SUPPORTED
- SAS CARD REQUIRED FOR SAS DEVICE SUPPORT ( NOT INCLUDED )
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: ( 2 ) TWO PCIE SLOTS
PCI INTERFACE TYPE: ( 2 ) TWO PCI-E 3.0 X16 ( FH / HL - VIA RISER BOARDS )
ADDITIONAL INTERFACES: ( 1 ) ONE PCI-E 3.0 X16 OCP V2.0 MEZZANINE SLOT
NETWORKING
- ( 2 ) TWO GBE LAN PORTS ( BROADCOM BCM5720 )
- ( 1 ) ONE GBE PORT FOR IPMI ( REALTEK RTL8211E )
POWER SUPPLY
- ( 2 ) TWO 650W POWER SUPPLIES ( HSPS / RPSU )
OPERATING SYSTEMS SUPPORTED
- WINDOWS SERVER 2019 64 BIT
- WINDOWS SERVER 2012 R2 X64
- WINDOWS SERVER 2016 64 BIT
- LINUX RHEL 7.4 X64
- LINUX RHEL 7.6 X64
- LINUX UBUNTU 16.04 X64
- LINUX UBUNTU 17.04 X64
- LINUX SUSE 11 SP4 X64
- LINUX SUSE 12 SP2 X64
- LINUX CENTOS 8.4
- LINUX CENTOS 7.6
FORM FACTOR
- 1U RACKMOUNT
- 24.6 INCH X 17.2 INCH X 1.72 INCH
