Product Details:

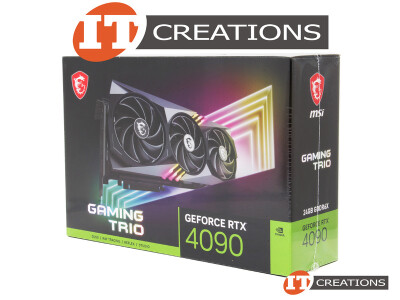

MSI NVIDIA GEFORCE RTX 4090 GAMING TRIO GPU 24GB 16384 CUDA CORES MEMORY INTERFACE 384 BIT GDDR6X PCI-E 4.0 X16 ( 3 ) THREE DISPLAYPORTS DP ( 1 ) ONE HDMI GRAPHICS PROCESSING UNIT VIDEO CARD - ADA LOVELACE ARCHITECTURE
MANUFACTURER: MSI / NVIDIA
PART NUMBER: GV-912-V510-014-RETAIL
ENGINE SPECS:
ENGINE ARCHITECTURE: ADA LOVELACE
CUDA CORES: 16,384
RAY TRACING CORES: 3RD GEN
TENSOR CORES: 4TH GEN
GPU CLOCK: 2235 MHZ
BOOST CLOCK: 2520 MHZ
EXTREME PERFORMANCE CLOCK: 2535 MHZ
MEMORY:
MEMORY CONFIGURATION: 24GB
MEMORY INTERFACE: GDDR6X
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 1,008 GB/S
MEMORY CLOCK: 21GB/S
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
SUPPORTED TECHNOLOGIES: 3RD GEN RAY TRACING CORES, 4TH GEN TENSOR CORES, NVIDIA DLSS ( 3 ), NVIDIA REFLEX, NVIDIA BROADCAST, RESIZABLE BAR, NVIDIA GEFORCE EXPERIENCE, NVIDIA ANSEL, NVIDIA FRESSTYLE, NVIDIA SHADOWPLAY, NVIDIA HIGHLIGHTS, NVIDIA G-SYNC, GAME READY DRIVERS, NVIDIA STUDIO DRIVERS, NVIDIA OMNIVERSE, MICROSOFT DIRECTX 12 ULTIMATE, NVIDIA GPU BOOST, VULKAN RT API, OPENGL 4.6, NVIDIA ENCODER NVENC ( 2X 8TH GEN ), NVIDIA DECODER ( 5TH GEN ), AV1 ENCODE, AV1 DECODE, CUDA CAPABILITY ( 8.9 ), VR READY, PCI EXPRESS GEN4
SPECIAL FEATURES: MSI TRI FROZR 3, TROX FAN 5.0, COPPER BASEPLATE, CORE PIPE
OPERATING SYSTEM SUPPORT: WINDOWS 11
NOTE:
- NVIDIA NVLINK ( SLI-READY ) NOT SUPPORTED
DISPLAY SUPPORT:
MAXIMUM DISPLAY RESOLUTION: 7680 X 4320 AT 60HZ
MULTI MONITOR: YES ( UP TO 4 MONITORS )
HDCP: 2.2
CONNECTIONS:
DISPLAY CONNECTORS: ( 3 ) THREE DISPLAYPORTS DP 1.4 ( 1 ) ONE HDMI 2.1
POWER CONNECTORS: ( 1 ) ONE 16 PIN POWER CONNECTOR
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 450W
RECOMMENDED SYSTEM POWER ( W ): 850W
COOLING SYSTEM:
ACTIVE - ( 3 ) THREE ACTIVE FANS ( TRI FROZR 3 FANSINK )
FORM FACTOR:
QUAD SLOT, FULL HEIGHT
DIMENSION:
13.36 X 5.51 X 3.03 INCH
