Product Details:

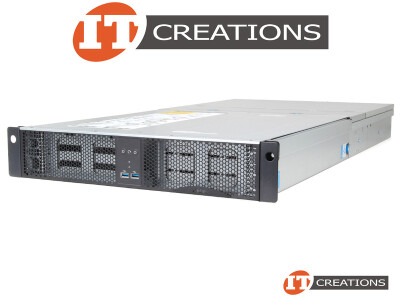

GIGABYTE S252-ZC0 RACK 3.5 INCH LFF 24 BAY + REAR 2.5 INCH SFF 2 BAY HSHD HSPS PRE CONFIGURATION 2U STORAGE SERVER CHASSIS ( S252ZC0 REV.A00 ) - LARGE FORM FACTOR 24B/ 24LFF ( SIDE CHASSIS ACCESS 12+12 ) + SMALL FORM FACTOR 2B / 2SFF ( REAR OPTION ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: GIGABYTE
PART NUMBER: S252-ZC0-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 2U CHASSIS ( 2 ) TWO HEATSINKS ( 2 ) TWO 1300W POWER SUPPLIES ( 1 ) ONE RACKMOUNT RAIL KIT ASSEMBLY
NOTE:
- THIS PRE CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3 SOCKET
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 2 ) TWO CPUs
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSOR FAMILY ( MILAN 7003 SERIES ) / 2ND GEN AMD EPYC PROCESSOR FAMILY ( ROME 7002 SERIES )
PROCESSOR CORE COUNT: UP TO 64 CORES
PROCESSOR TDP: UP TO 200W
NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- IF ONLY 1 CPU SOCKET IS POPULATED, SOME PCIE OR MEMORY FUNCTIONS MIGHT BE UNAVAILABLE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DIMM SLOTS
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
MEMORY SPEEDS: UP TO 3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS ( PER CPU )
NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: ( 24 ) TWENTY FOUR 3.5 INCH LFF HOT SWAP HARD DRIVE
ADDITIONAL STORAGE SUPPORT: REAR ( 2 ) TWO 2.5 INCH SFF HOT SWAP AHRD DRIVE
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S ) / SAS ( 12GB/S ) / PCIE GEN4 X4 NVME
NOTE:
- PCIE NVME DRIVES SUPPORTED ON REAR BAYS ONLY
- SAS CARD REQUIRED FOR SAS DEVICES
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: ( 6 ) SIX PCI-E INTERFACES
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY
- 3X16 HH
- 3X16 HH
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 1 ) ONE 10 / 100 / 1000 MANAGEMENT LAN PORT
POWER SUPPLY
- ( 2 ) TWO 1300W POWER SUPPLIES ( REDUNDANT 80 PLUS PLATINUM )
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2016 ( X2APIC / 256T NOT SUPPORTED )
- MICROSOFT WINDOWS SERVER 2019
- MICROSOFT WINDOWS SERVER 2022
- RED HAT ENTERPRISE LINUX 8.3 ( X64 ) OR LATER
- RED HAT ENTERPRISE LINUX 9.0 ( X64 ) OR LATER
- SUSE LINUX ENTERPRISE SERVER 12 SP5 ( X64 ) OR LATER
- SUSE LINUX ENTERPRISE SERVER 15 SP5 ( X64 ) OR LATER
- UBUNTU 18.04.5 LTS ( X64 ) OR LATER
- UBUNTU 20.04 LTS ( X64 ) OR LATER
- UBUNTU 22.04 LTS ( X64 ) OR LATER
- VMWARE ESXI 6.7 UPDATE3 P03 OR LATER
- VMWARE ESXI 7.0 UPDATE3 P03 OR LATER
- VMWARE ESXI 8.0 OR LATER
- CITRIX HYPERVISOR 8.2.1 OR LATER
FORM FACTOR
- 2U RACKMOUNT
- 438 MM X 87 MM X 880 MM
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON GIGABYTE DOCUMENTATION DATED NOVEMBER 2024 - INFORMATION MAY CHANGE
