Product Details:

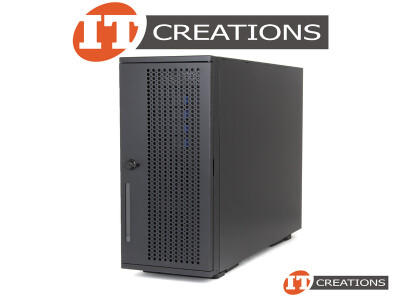

GIGABYTE W291-Z00 REV.C00 TOWER 3.5 INCH LFF 4 BAY HSHD HSPS PRE CONFIGURATION 4U SERVER CHASSIS ( W291Z00 ) - ( 1 ) ONE PCIE GEN3 X4 NVME M.2 SLOT + LARGE FORM FACTOR 4B / 4LFF ( ALSO COMPATIBLE WITH 2.5 INCH SFF DRIVES ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: GIGABYTE
PART NUMBER: W291-Z00-REV.C00-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE TOWER GPU CHASSIS ( 1 ) ONE HEATSINK AND FAN ASSY ( 2 ) TWO 1600W POWER SUPPLIES
NOTE:
- THIS PRE CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3 SOCKET
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSOR FAMILY ( MILAN 7003 SERIES ) / 2ND GEN AMD EPYC PROCESSOR FAMILY ( ROME 7002 SERIES )
PROCESSOR TDP: UP TO 280W
PROCESSOR CORE COUNT: UP TO 64 CORES
NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 8 ) EIGHT DIMM SLOTS
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / RDIMM 3DS / LRDIMM / LRDIMM 3DS
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS ( PER CPU )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: ( 4 ) FOUR 3.5 INCH LFF HOT SWAP HARD DRIVE
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO M.2 PCIE GEN4 X4 NVME ( 2242 / 2260 / 2280 / 22110 )
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL: SAS3 / SATA3 / PCIE GEN3 X4 NVME
NOTE:
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- SAS CARD REQUIRED FOR SAS DEVICES
- PCIE NVME PROTOCOL SUPPORTED WITH M.2 SSDs ONLY
- STORAGE BAYS ALSO SUPPORT 2.5 INCH SFF DRIVES
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 5 ) FIVE PCI-E INTERFACES
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES MYA VARY
- 4X16 FH + 1X8 FH
NOTE:
- NO ADD ON CARDS INCLUDED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 1GB/S LAN PORTS ( INTEL I210-AT )
- ( 1 ) ONE 1000MB/S MANAGEMENT LAN PORT
POWER SUPPLY
- ( 2 ) TWO 1600W POWER SUPPLIES ( PLATINUM 80 PLUS PLATINUM )
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2016 ( X2APIC / 256T NOT SUPPORTED )
- MICROSOFT WINDOWS SERVER 2019
- MICROSOFT WINDOWS SERVER 2022
- RED HAT ENTERPRISE LINUX 8.3 ( X64 ) OR LATER
- RED HAT ENTERPRISE LINUX 9.0 ( X64 ) OR LATER
- SUSE LINUX ENTERPRISE SERVER 12 SP5 ( X64 ) OR LATER
- SUSE LINUX ENTERPRISE SERVER 15 SP2 ( X64 ) OR LATER
- UBUNTU 18.04.5 LTS ( X64 ) OR LATER
- UBUNTU 20.04 LTS ( X64 ) OR LATER
- UBUNTU 22.04 LTS ( X64 ) OR LATER
- VMWARE ESXI 6.7 UPDATE3 P03 OR LATER
- VMWARE ESXI 7.0 UPDATE1 OR LATER
- VMWARE ESXI 8.0 OR LATER
- CITRIX HYPERVISOR 8.2.0 OR LATER
FORM FACTOR
- 4U TOWER / PEDESTAL
- 200 MM X 450.2 MM X 642.2 MM
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON GIGABYTE DOCUMENTATION DATED MAY 2021 - INFORMATION MAY CHANGE
