Product Details:

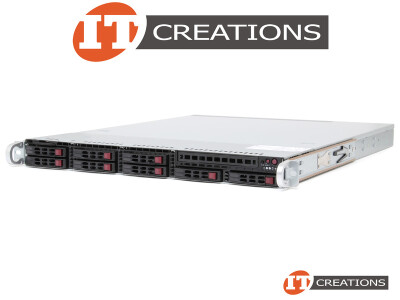

SUPERMICRO SUPERSERVER 1029P-WTR 2.5 INCH SFF 8 BAY HSHD HSPS PRE CONFIGURATION 1U SERVER CHASSIS ( CSE-113-7 / CSE-113AC2 ) - X11DDW-L MOBO SUPPORTS ( 2 ) TWO FCLGA3647 SOCKET P ( 1ST GEN / 2ND GEN INTEL XEON SCALABLE PROCESSORS ) ( 12 ) TWELVE DDR4 DIMM SLOTS ( 2 ) TWO 10GBASE-T LAN PORTS ( RJ45 ) VIA INTEL C622 ( 1 ) ONE DEDICATED IPMI LAN PORT ( RJ-45 ) ( 3 ) THREE PCI-E 3.0 SLOTS ( 1X8 HALF HEIGHT + 2X16 FULL HEIGHT ) - SMALL FORM FACTOR 8B / 8SFF HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: SUPERMICRO
PART NUMBER: SYS-1029P-WTR
CONFIGURATION INCLUDES: ( 1 ) ONE 1U SERVER CHASSIS ( 2 ) TWO HEATSINKS ( 2 ) TWO 750W POWER SUPPLIES ( 1 ) ONE 1U RACK RAIL MOUNTING KIT
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA3647
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR FAMILY / 1ST GEN INTEL XEON SCALABLE PROCESSOR FAMILY
PROCESSOR CORE COUNT: UP TO 28 CORES PER SOCKET
PROCESSOR TDP: UP TO 165W
NOTE:
- CERTAIN HIGH FREQUENCY OPTIMIZED CPUs WITHIN 165W TDP ARE NOT SUPPORTED, SUCH AS INTEL GOLD 6244, 6246, 6250, 6256
- BIOS VERSION 3.2 OR ABOVE REQUIRED TO SUPPORT 2ND GEN INTEL XEON SCALABLE PROCESSORS
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 12 ) TWELVE DIMM SLOTS
MEMORY SIZE: UP TO 3TB LRDIMM / RDIMM
MEMORY SPEEDS: UP TO DDR4-2933MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- SUPPORTS NON VOLATILE DIMM ( NVDIMM ) AND INTEL OPTANE DC PERSISTENT MEMORY MODULE ( DCPMM )
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 8 ) EIGHT 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY SAS / SATA )
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS / SATA
ADDITIONAL STORAGE SUPPORT: ( 1 ) ONE M.2 INTERFACE ( PCI-E 3.0 X4 ONBOARD )
NOTE:
- M.2 SUPPORTS X1 2242, 2260, 2280 OR 22110
- NO HARD DRIVES INCLUDED - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 3 ) THREE PCI-E SLOTS ( 1 ) ONE MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES VARY
- 2X16 FHHL
- 1X8 HHHL
- MEZZANINE SLOT ( MEZZANINE EXPANSION OPTIONAL )
NOTE:
- NO ADD ON CARDS INCLUDED - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 750W
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2016
- MICROSOFT WINDOWS SERVER 2019
- RHEL 7.3
- RHEL 8.1
- UBUNTU 16.04LTS
- UBUNTU 18.04LTS
- SLES 12 SP5
- SLES 15 SP1
- ESXI 6.5
- ESXI 6.7
- ESXI 7.0
- XENSERVER
- 7.1 CU2
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON SUPERMICRO DOCUMENTATION DATED DECEMBER 2019 - INFORMATION MAY CHANGE
