Product Details:

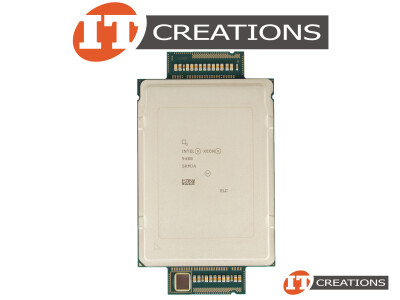

INTEL XEON MAX SERIES 56 CORE PROCESSOR 9480 1.90GHZ BASE / 3.50GHZ MAX 112.5MB CACHE 16GT/S UPI TDP 350W 2S FCLGA4677 ( SAPPHIRE RAPIDS HBM )
MANUFACTURER: INTEL
PART NUMBER: PK8071305223000
CPU SERIES: INTEL XEON CPU MAX SERIES
PROCESSOR CODE NAME: SAPPHIRE RAPIDS HBM
SOCKETS SUPPORTED: FCLGA4677
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 1.90GHZ
CPU MAX TURBO FREQUENCY: 3.50GHZ
MULTI-CORE: 56-CORE
THREADS: 112
CACHE: 112.5MB
INTEL UPI SPEED: 16GT/S
INTEL UPI LINKS: 4
LITHOGRAPHY: INTEL 7
THERMAL DESIGN POWER: 350W
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 4TB ( 4,000GB )
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 4800 MHZ 1DPC / 4400 MHZ 2DPC
MAX NUM. MEMORY CHANNELS: 8
MAX HIGH BANDWIDTH MEMORY ( HBM ): 64GB
ERROR CORRECTION CODE SUPPORT ( ECC ): YES
EXPANSION OPTIONS
SCALABILITY: 2S
PCI EXPRESSION REVISION: 5.0
MAX NUM. OF PCI LANES: 88
ADVANCED TECHNOLOGIES
INTEL DATA STREAMING ACCELERATOR ( DSA ): 4 DEFAULT DEVICES
INTEL ADVANCED MATRIX EXTENSIONS ( AMX ): YES
INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL AMX, INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
SECURITY & RELIABILITY
INTEL CRYPTO ACCELERATION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL ADVANCED ENCRYPTION STANDARD AES: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES
DEFAULT MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 512GB
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
