Product Details:

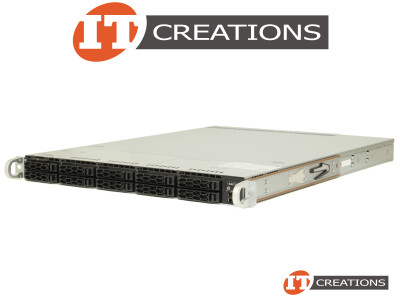

SUPERMICRO CLOUDDC SUPERSERVER SYS-120C-TN10R RACK 2.5 INCH SFF 10 BAY HYBRID HSHD HSPS PRE CONFIGURATION 1U SERVER CHASSIS ( CSE-LB16AC10 / CSE-LB16AC10-R860AW ) - SUPER X12DDW-A6 MOBO ( 2 ) TWO FCLGA4189 SOCKETS ( P+ SOCKET ) ( COMPATIBLE WITH 3RD GEN INTEL XEON SCALABLE - ICE LAKE ) ( 16 ) SIXTEEN DDR4 DIMM SLOTS UP TO ( 2 ) TWO PCI-E 4.0 INTERFACES ( 2X16 FHHL ) ( 2 ) TWO OCP 3.0 MEZZANINE SLOTS ( PCIE GEN4 X16 BANDWIDTH ) - ( 2 ) TWO PCIE GEN3 NVME M.2 INTERFACES + SMALL FORM FACTOR 10B / 10SFF ( SUPPORTS PCIE NVME / SAS / SATA - REQUIRES OPTIONAL NVME CABLES ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: SUPERMICRO
PART NUMBER: SYS-120C-TN10R-RETAIL
CONFIGURATION INCLUDES: ( 1 ) ONE 1U RACK SERVER CHASSIS ( 2 ) TWO HEATSINKS ( 2 ) TWO 860W POWER SUPPLIES
NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: FCLGA4189 SOCKET
MAX NUMBER PROCESSOR SUPPORTED: ( 2 ) TWO CPUs
PROCESSOR COMPATIBILITY: 3RD GEN INTEL XEON SCALABLE PROCESSORS
PROCESSOR TDP: UP TO 270W
NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: ( 16 ) SIXTEEN DIMM SLOTS
MEMORY SIZE: UP TO 4TB RDIMM / LRDIMM ( 1DPC )
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: ( 10 ) TEN 2.5 INCH SFF HOT SWAP HARD DRIVES
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO PCIE 3.0 X2 NVME M.2
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S )
NOTE:
- NO STORAGE INCLUDED WITH THIS CONFIGURATION
- OPTIONAL STORAGE CARD AND CABLES REQUIRED FOR SAS / NVME STORAGE OPTIONS - NOT INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: ( 2 ) TWO PCIE SLOTS ( 2 ) TWO OCP MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY ( LANE SPEEDS ARE DEPENDENT ON INTERFACE POPULATION )
- 2X16 FULL HEIGHT / HIGH PROFILE
- ( 2 ) TWO OCP 3.0 AIOM MEZZANINE SLOTS ( PCI-E 4.0 X16 BANDWIDTH )
NETWORKING
- ( 1 ) ONE 1GBE DEDICATED BMC LAN PORT ( RJ45 / RJ-45 )
NOTE:
- NETWORK CARDS ARE OPTIONAL - NO NICs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPLY
- ( 2 ) TWO 860W POWER SUPPLIES
