Product Details:

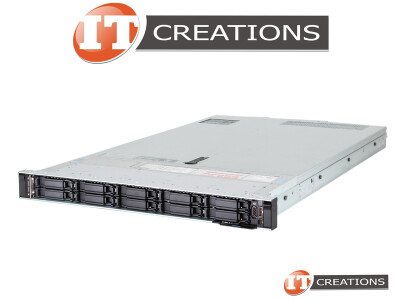

DELL POWEREDGE R640 IDRAC9 ENTERPRISE VXFLEX 2.5 INCH SFF 10 BAY HPHD HPPS 1U SERVER CHASSIS - SMALL FORM FACTOR 10B / 10SFF HOT PLUG HARD DRIVE HOT PLUG POWER SUPPLY
MANUFACTURER: DELL
PART NUMBER: DELL R640 10B 3P ID9 EN VXF
NOTE: THIS IS A 2.5 INCH SFF 10 BAY MODEL WITH ENTERPRISE VXLFEX OS READY. IT DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA3647 ( SOCKET P )
PROCESSOR COMPATIBILITY: 2ND GEN INTEL XEON SCALABLE PROCESSOR SERIES ( CASCADE LAKE ) / 1ST GEN INTEL XEON SCALABLE PROCESSOR SERIES ( SKYLAKE )
PROCESSOR CORES: UP TO 28 CORES PER PROCESSOR
PROCESSOR TDP: UP TO 205W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 24 ) TWENTY FOUR DIMM SLOTS
MEMORY SIZE: UP TO 1.53TB ECC RDIMM / 3TB LRDIMM / 192GB NVDIMM / 6.14TB DCPMM / 7.68TB DPCMM+LRDIMM
MEMORY SPEEDS: DDR4-2933MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR TYPE )
NUMBER OF CHANNELS: 6 CHANNELS PER PROCESSOR
NOTE:
- 12 DIMMs AVAILABLE PER PROCESSOR
- 2 DIMMs PER CHANNEL
- DCPMM IS SUPPORTED WITH RDIMMs OR LRDIMMs
- NVDIMMs NOT SUPPORTED WITH RDIMMs
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 10 ) TEN 2.5 INCH SFF HOT PLUG HARD DRIVES
ADDITIONAL STORAGE SUPPORT: M.2 SSD VIA PCIE BOSS CARD
STORAGE TYPE: HDD / SSD / M.2
STORAGE PROTOCOL: SAS / SATA / NVME
MAX STORAGE SIZE: 76.8TB
NOTE:
- STORAGE CAPACITY IS BASED ON PROTOCOL AND NUMBER OF DEVICES
- REAR 2.5 INCH SFF 2 BAY STORAGE IS OPTIONAL
- M.2 PCIE BOSS CARD IS OPTIONAL. ONLY SUPPORTS SATA PROTOCOL WITH EITHER NON RAID OR RAID 1
- BOSS MODULE IS OPTIONAL - NOT INCLUDED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 3 ) THREE PCI-E 3.0 SLOTS
- 3X16 HH ( HALF HEIGHT / LOW PROFILE )
NOTE:
- 2 PCIE SLOT FULL HEIGHT CONFIGURATION IS OPTIONAL - PLEASE CHECK AVAILABILITY
- 1 PCIE SLOT WITH REAR 2.5 INCH SFF 2 BAY CONFIGURATION IS OPTIONAL - PLEASE CHECK AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 495W / 750W / 1100W / 1600W ( PER POWER SUPPLY )
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
SYSTEM MANAGEMENT
REMOTE MANAGEMENT: IDRAC9 ENTERPRISE
NOTE:
- IDRAC9 ENTERPRISE INCLUDED WITH THIS MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
OPERATING SYSTEMS SUPPORTED
- CANONICAL UBUNTU SERVER LTS
- CITRIX HYPERVISOR
- MICROSOFT WINDOWS SERVER LTSC WITH HYPER-V
- ORACLE LINUX
- RED HAT ENTERPRISE LINUX
- SUSE LINUX ENTERPRISE SERVER
- VMWARE ESXI
NOTE:
- THIS R640 MODEL IS ENTERPRISE VXFLEX READY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON DELL TECHNICAL GUIDE DOCUMENTATION DATED JUNE 2021 - INFORMATION MAY CHANGE
