Product Details:

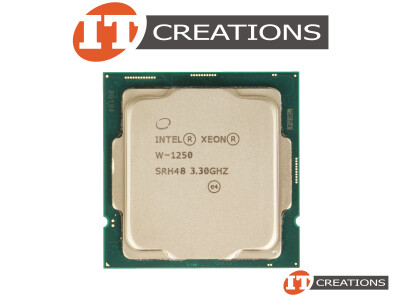

INTEL XEON 6 CORE PROCESSOR W-1250 3.30GHZ BASE / 4.70GHZ MAX 12MB SMART CACHE 8 GT/S BUS SPEED TDP 80W FCLGA1200 ( COMET LAKE )
MANUFACTURER: INTEL
PART NUMBER: SRH48
CPU SERIES: INTEL XEON W PROCESSOR SERIES
PROCESSOR CODE NAME: COMET LAKE
SOCKETS SUPPORTED: FCLGA1200
MAX CPU CONFIGURATION: 1
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 3.30GHZ
CPU MAX TURBO FREQUENCY: 4.70GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.70GHZ
MULTI-CORE: 6-CORE
THREADS: 12
CACHE: 12MB INTEL SMART CACHE
BUS SPEED: 8 GT/S
LITHOGRAPHY: 14 NM
THERMAL DESIGN POWER: 80W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 128GB
MEMORY TYPES: DDR4
MAX MEMORY SPEEDS: 2666 MHZ
MAX NUM. MEMORY CHANNELS: 2
MAX MEMORY BANDWIDTH: 41.6GB/S
ERROR CORRECTION CODE MEMORY ( ECC ): YES
GPU SPECIFICATIONS
GPU NAME: INTEL UHD GRAPHICS P630
GRAPHICS BASE FREQUENCY: 350MHZ
GRAPHICS MAX DYNAMIC FREQUENCY: 1.20GHZ
GRAPHICS VIDEO MAX MEMORY: 64GB
4K SUPPORT: YES, AT 60HZ
MAX RESOLUTION ( HDMI ): 4096 X 2160 AT 30HZ
MAX RESOLUTION ( DP ): 4096 X 2304 AT 60HZ
MAX RESOLUTION ( EDP - INTEGRATED FLAT PANEL ): 4096 X 2304 AT 60HZ
DIRECTX SUPPORT: 12
OPENGL SUPPORT: 4.5
INTEL QUICK SYNC VIDEO: YES
INTEL INTRU 3D TECHNOLOGY: YES
INTEL CLEAR VIDEO HD TECHNOLOGY: YES
INTEL CLEAR VIDEO TECHNOLOGY: YES
NUM. OF DISPLAYS SUPPORTED: 3
DEVICE ID: 0X9BE6
EXPANSION OPTIONS
SCALABILITY: 1S ONLY
PCI EXPRESSION REVISION: 3.0
PCI EXPRESSION REVISION: 1X16 / 2X8 / 1X8+2X4
MAX NUM. OF PCI LANES: 16
ADVANCED TECHNOLOGIES
INTEL OPTANE MEMORY SUPPORTED: YES
INTEL THERMAL VELOCITY BOOST: NO
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: NO
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): NO
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL SSE4.2, INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
INTEL IDENTITY PROTECTION TECHNOLOGY: YES
SECURITY & RELIABILITY
INTEL VPRO ELIGIBILITY: INTEL VPRO PLATFORM
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES, WITH INTEL ME
INTEL ADVANCED ENCRYPTION STANDARD AES NEW
INSTRUCTIONS: YES
SECURE KEY: YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRUALIZATION TECHNOLGOY FOR DIRECTED I/O
( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
