Product Details:

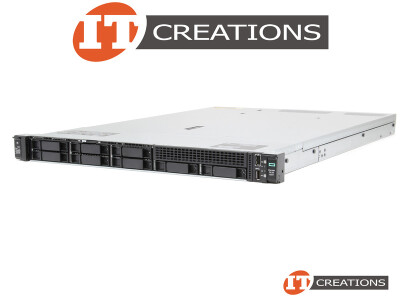

HPE PROLIANT DL325 G11 RACK 2.5 INCH SFF 8 BAY HPHD HPPS 1U SERVER CHASSIS ( GEN11 ) - ( STANDARD SERVER CHASSIS FOR 8B - 10B VIA OPTIONAL CAGE BAY )
MANUFACTURER: HP
PART NUMBER: HP DL325 G11 2.5
NOTE: THIS MODEL IS A 2.5 INCH SFF 8 BAY SAS / SATA STANDARD OPTION ONLY ( UP TO 10 BAY SAS, SATA, OR NVME COMPATIBLE - CHECK FOR AVAILABILITY ). IF YOU DESIRE A 3.5 INCH LFF ( UP TO 4 BAY SAS / SATA ) OR EDSFF OPTIONS, PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: SP5
PROCESSOR COMPATIBILITY: 5TH GEN AMD EPYC PROCESSORS ( TURIN 9005 ) / 4TH GEN AMD EPYC PROCESSORS ( GENOA / GENOA-X / BERGAMO 9004 )
PROCESSOR CORE COUNT: UP TO 160 CORES PER SOCKET
PROCESSOR TDP: UP TO 400W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 12 ) TWELVE DIMM SLOTS
RDIMM MEMORY SIZE CAPACITY: UP TO 3TB
MEMORY SPEEDS ( WITH 5TH GEN INTEL PROCESSORS ): DDR5-6400MHZ ( AT 1DPC )
MEMORY SPEEDS ( WITH 4TH GEN INTEL PROCESSORS ): DDR5-4800MHZ ( AT 1DPC )
NUMBER OF CHANNELS: 12 CHANNELS ( 1 DIMMS PER CHANNEL )
NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 10 ) TEN 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY SAS / SATA IS STANDARD + 2 BAY IS OPTIONAL )
STORAGE TYPE: SSD
STORAGE PROTOCOL: SAS4 / SATA3 / PCIE GEN4 NVME
MAX STORAGE SIZE: UP TO 76.8TB SAS / SATA OR 153.6TB U.3 PCIE NVME
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO M.2 PCIE NVME 22110 OR M.2 SATA 2280 INTERFACES ( VIA OPTIONAL M.2 ENABLEMENT KIT )
NOTE:
- 8+2 STORAGE CONFIGURATIONS ALSO AVAILABLE
- ( 2 ) TWO 2.5 INCH SFF BAYS VIA FRONT MEDIA BAY IS OPTIONAL
- M.2 SUPPORTS 3.84TB ( 2X1.92TB ) PCIE NVME OR 960GB ( 2X480GB ) SATA CONFIGURATION
- OPTIONAL BAYS MUST BE INSTALLED TO REACH MAXIMUM CAPACITY STORAGE
- IF YOU DESIRE A 3.5 INCH LFF OR EDSFF OPTION CHASSIS, PLEASE CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 2 ) TWO PCI-E SLOTS ( 2 ) TWO MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 5.0 - INTERFACES VARY
- 1X16 FHFL ( 1X16 CONNECTORS ) ( STANDARD PRIMARY RISER )
- 1X16 HHHL OR FHHL ( 1X16 CONNECTORS ) ( SECONDARY RISER )
- ( 2 ) TWO OCP 3.0 MEZZANINE SLOTS ( PCI-E 5.0 X8 BANDWIDTH )
NOTE:
- SECONDARY AND TERTIARY REQUIRE 2ND PROCESSOR CONFIGURATION
- OCP 3.0 SLOTS SUPPORT SHARED NIC AND WOL ( WAKE ON LAN ) FUNCTIONS
- FRONT GPU RISER CONFIGURATIONS ONLY SUPPORTED WITH EDSFF CONFIGURAITONS
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 500W / 800W / 1000W / 1600W / 2200W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED JUNE 2025 - INFORMATION MAY CHANGE
