Product Details:

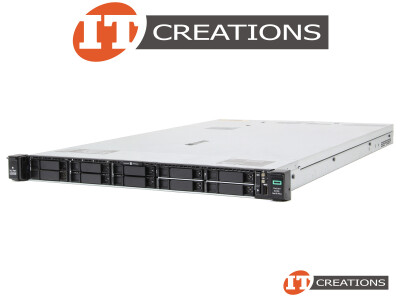

HPE PROLIANT DL365 G10 PLUS RACK 2.5 INCH SFF 8 BAY HPHD HPPS 1U SERVER CHASSIS ( GEN10 PLUS / G10+ / G10P / GEN10+ ) - ( STANDARD SERVER CHASSIS FOR 8B - 10B VIA OPTIONAL 2B CAGE )
MANUFACTURER: HP
PART NUMBER: HP DL365 G10 PLUS 2.5
NOTE: THIS MODEL IS A 2.5 INCH SFF 8 BAY SAS / SATA STANDARD OPTION ONLY ( UP TO 10 BAY SAS, SATA, OR NVME COMPATIBLE - CHECK FOR AVAILABILITY ). OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: SP3
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSORS ( MILAN-X / MILAN 7003 SERIES )
PROCESSOR CORE COUNT: UP TO 64 CORES PER SOCKET
PROCESSOR TDP: UP TO 280W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS ( 16 DIMMs PER PROCESSOR )
LRDIMM MEMORY SIZE CAPACITY: UP TO 8TB
RDIMM MEMORY SIZE CAPACITY: UP TO 2TB
INTEL PERSISTENT MEMORY SIZE CAPACITY: UP TO 8TB
MEMORY SPEEDS: DDR4-3200MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 8 CHANNELS PER PROCESSOR ( 2 DIMMS PER CHANNEL )
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 10 ) TEN 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY SAS / SATA IS STANDARD )
STORAGE TYPE: HDD / SDD
STORAGE PROTOCOL: SAS / SATA / PCIE NVME
MAX STORAGE SIZE:
- 24TB ( SAS HDD )
- 20TB ( SATA HDD )
- 153TB ( SAS SSD )
- 76.8TB ( SATA SSD )
- 153.6TB ( PCIE NVME SSD )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO M.2 INTERFACES ( VIA OPTIONAL PRIMARY M.2 RISER BOARD )
NOTE:
- 8+2 STORAGE CONFIGURATIONS ALSO AVAILABLE
- OPTIONAL BAYS MUST BE INSTALLED TO REACH MAXIMUM CAPACITY STORAGE
- ( 2 ) TWO M.2 INTERFACES VIA PRIMARY RISER BOARD - OPTIONAL ( SUPPORTS 2 X 480GB - 22110 )
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 3 ) THREE PCI-E SLOTS ( 1 ) ONE MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES VARY
- 1X16 FH, 3/4 LENGTH + 1X16 HHHL ( STANDARD - PRIMARY GPU RISER )
- 1X16 FH, 3/4 LENGTH + 1X8 HHHL ( OPTIONAL - PRIMARY PCIE M.2 RISER )
- 1X16 HHHL ( SECONDARY RISER )
- 1X16 FH, 3/4 LENGTH ( OPTIONAL - SECONDARY GPU RISER )
- OCP 3.0 1X16 MEZZANINE SLOT ( MEZZANINE EXPANSION OPTIONAL )
NOTE:
- PCIE M.2 RISER WITH HW RAID SUPPORT NS204I-R
- IF SECONDARY GPU RISER IS SELECTED, SLOT2 CAN NOT BE USED ON ANY PRIMARY RISERS SELECTED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 500W / 800W / 1000W / 1600W / 1800W / 2200W
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED DECEMBER 2024 - INFORMATION MAY CHANGE
