Product Details:

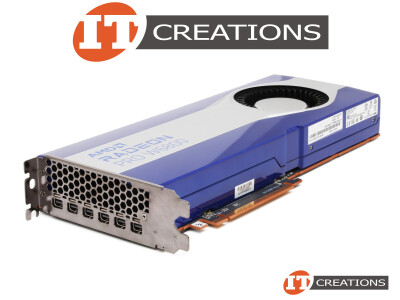

AMD RADEON PRO W6800 GPU 32GB 3840 STREAM PROCESSORS MEMORY INTERFACE 256 BIT GDDR6 MEMORY BANDWIDTH 512GB/S PCI-E 4.0 X16 ( 6 ) SIX MINI DISPLAYPORTS MDP GRAPHICS PROCESSING UNIT VIDEO CARD - PROFESSIONAL GRAPH DUAL SLOT
MANUFACTURER: AMD
PART NUMBER: AMD RADEON PRO W6800
ENGINE SPECS:
ENGINE ARCHITECTURE: RADEON DNA ( RDNA 2 )
ENGINE CHIP MODEL: NAVI 21
STREAM PROCESSOR CORES: 3840 ( 60 COMPUTE UNITS )
COMPUTE UNITS: 60
GPU CLOCK ( BASE ): 2075 MHZ
BOOST GPU CLOCK ( MAX ): 2320 MHZ
PEAK HALF PRECISION ( FP16 ) PERFORMANCE: 35.66 TFLOPS ( TERAFLOPS )
PEAK SINGLE PRECISION ( FP32 ) PERFORMANCE: 17.83 TFLOPS ( TERAFLOPS )
PEAK DOUBLE PRECISION ( FP64 ) PERFORMANCE: 1.11 TFLOPS ( TERAFLOPS )
MEMORY:
MEMORY CONFIGURATION: 32GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 512GB/S
ERROR CORRECTION CODE ( ECC ): YES
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
SUPPORTED TECHNOLOGIES: AMD REMOTE WORKSTATION, AMD RADEON MEDIA ENGINE, AMD SOFTWARE: PRO EDITION, AMD RADEON VR READY CREATOR, AMD RADEON PRORENDER, 4K H264 ENCODE AND DECODE, AV1 DECODE, H265 / HEVC ENCODE AND DECODE, 3D STRERO SUPPORT, DIRECTX 12.0, OPENGL 4.6, OPENCL 2.1, VULKAN 1.2, HDR SUPPORT, HARDWARE RAYTRACING, PCI-E 4.0
DISPLAY SUPPORT:
MULTI MONITOR: YES ( UP TO 6 MONITORS )
5K RESOLUTION: 6X 5120 X 2880
8K RESOLUTION: 2X 7680 X 4320
HDR SUPPORT: YES
8K SUPPORT: YES
CONNECTIONS:
DISPLAY CONNECTORS: ( 6 ) SIX MINI DISPLAYPORTS MDP
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 250W
MINIMUM POWER RECOMMENDATION ( W ): 650W
POWER CONNECTORS: ( 1 ) ONE 8 PIN POWER CONNECTOR ( 1 ) ONE 6 PIN POWER CONNECTOR
COOLING SYSTEM:
ACTIVE HEATSINK - ( 1 ) ONE FAN BLOWER
FORM FACTOR:
DUAL SLOT, FULL HEIGHT
DIMENSIONS:
10.5 INCH ( L ) X 4.7 INCH ( W ) X 2 INCH ( H )
