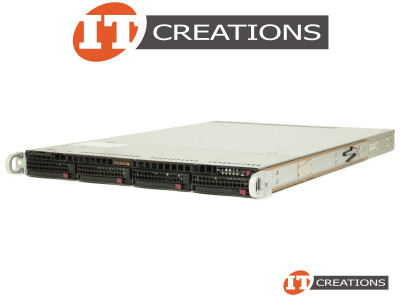

SUPERMICRO WIO A+ SERVER AS-1014S-WTRT 3.5 INCH LFF 4 BAY HSHD HSPS PRE CONFIGURATION 1U SERVER CHASSIS NEW ( CSE-815 / CSE-815TS-R504WBP4 ) - SUPPORTS MOBO H12SSW-NT ( 1 ) ONE SP3 SOCKET ( COMPATIBLE WITH 3RD GEN / 2ND GEN AMD EPYC PROCESSORS - MILAN 7003 / ROME 7002 SERIES ) ( 8 ) EIGHT DDR4 DIMM SLOTS ( 2 ) TWO 10GBASE-T LAN PORTS ( BROADCOM BCM57416 ) UP TO ( 3 ) THREE PCI-E 4.0 INTERFACES ( 2X16 FHHL + 1X16 HH ) - ( 2 ) TWO M.2 PCIE NVME + (AS-1014S-WTRT-NEW)

Product Details:

SUPERMICRO WIO A+ SERVER AS-1014S-WTRT 3.5 INCH LFF 4 BAY HSHD HSPS PRE CONFIGURATION 1U SERVER CHASSIS NEW ( CSE-815 / CSE-815TS-R504WBP4 ) - SUPPORTS MOBO H12SSW-NT ( 1 ) ONE SP3 SOCKET ( COMPATIBLE WITH 3RD GEN / 2ND GEN AMD EPYC PROCESSORS - MILAN 7003 / ROME 7002 SERIES ) ( 8 ) EIGHT DDR4 DIMM SLOTS ( 2 ) TWO 10GBASE-T LAN PORTS ( BROADCOM BCM57416 ) UP TO ( 3 ) THREE PCI-E 4.0 INTERFACES ( 2X16 FHHL + 1X16 HH ) - ( 2 ) TWO M.2 PCIE NVME + LARGE FORM FACTOR 4B / 4LFF HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY

MANUFACTURER: SUPERMICRO
PART NUMBER: AS-1014S-WTRT-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 1U RACK SERVER CHASSIS ( 1 ) ONE HEATSINK ( 2 ) TWO 500W POWER SUPPLIES

NOTE:
- THIS PRE-CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION

PROCESSOR SUPPORT

PROCESSOR SOCKET TYPE: SP3 SOCKET
MAX NUMBER PROCESSOR SUPPORTED: ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 3RD GEN AMD EPYC PROCESSORS ( 7003 SERIES ) / 2ND GEN AMD EPYC PROCESSORS ( 7002 SERIES )
PROCESSOR TDP: UP TO 280W

NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

MEMORY SUPPORT

MEMORY SUPPORTED: ( 8 ) EIGHT DIMM SLOTS
MEMORY SIZE: UP TO 2TB RDIMM RDIMM / LRDIMM ( 1DPC )
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )

NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

STORAGE SUPPORTS

HARD DRIVE SUPPORT: ( 4 ) FOUR 3.5 INCH LFF HOT SWAP HARD DRIVES ( SUPPORTS SATA - PCIE NVME SUPPORTED, STORAGE CONTROLLER REQUIRED )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO PCIE 3.0 X1 SATA / NVME M.2
STORAGE PROTOCOL SUPPORT: SATA ( 6GB/S )

NOTE:
- NO STORAGE INCLUDED WITH THIS CONFIGURATION
- OPTIONAL STORAGE CARD AND CABLES REQUIRED FOR SAS / NVME STORAGE OPTIONS - NOT INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

EXPANSION SLOT SUPPORT

NUMBER OF PCI SLOTS SUPPORT: ( 3 ) THREE PCIE SLOTS
PCI INTERFACE TYPE: ( 2 ) TWO PCI-E 4.0 X16 ( FULL HEIGHT ) / ( 1 ) ONE PCI-E 4.0 X16 ( HALF HEIGHT )

NETWORKING

- ( 2 ) TWO 10GBE LAN PORTS ( RJ45 / RJ-45 ) ( ONBOARD - BROADCOM BCM57416 )
- ( 2 ) TWO 1GBASE-T LAN PORTS ( RJ45 / RJ-45 )
- ( 1 ) ONE 1GBE DEDICATED BMC LAN PORT ( RJ45 / RJ-45 )

NOTE:
- NETWORK CARDS ARE OPTIONAL - NO NICs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS

POWER SUPPLY

- ( 2 ) TWO 500W POWER SUPPLIES
