Product Details:

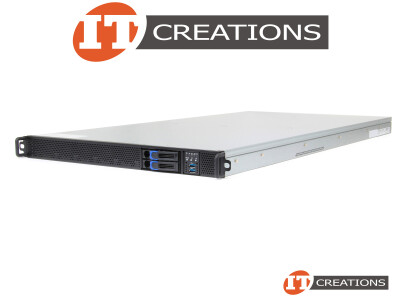

MITAC / TYAN TRANSPORT HX GA88-B8021 1U1S RACK 2.5 INCH SFF 2 BAY HSHD HSPS 4/6GPU 1U HPC SERVER CHASSIS ( GA88B8021 ) - ( 2 ) TWO M.2 PCIE NVME ( 2280 / 22110 ) + SMALL FORM FACTOR 2B / 2SFF HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: MITAC
PART NUMBER: GA88B8021-RETAIL
SERVER INCLUDES: ( 1 ) ONE 1U CHASSIS ( 1 ) ONE HEATSINK ( 2 ) TWO 1600W HOT SWAP POWER SUPPLIES ( 1 ) ONE RACK MOUNT RAIL KIT ASSEMBLY
NOTE:
- THIS SERVER OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP3
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 2ND GEN AMD EPYC PROCESSORS ( ROME 7002 SERIES ) / 1ST GEN AMD EPYC PROCESSORS ( NAPLES 7001 SERIES )
PROCESSOR TDP: UP TO 180W
NOTE:
- PROCESSOR MODEL SERIES COMPATIBILITY IS DEPENDENT ON MOTHERBOARD VERSION - CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 16 ) SIXTEEN DDR4 DIMM SLOTS
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / LRDIMM 3DS / LRDIMM
MEMORY SIZE: UP TO 2048GB ( RDIMM / LRDIMM 3DS ) OR 1024GB ( LRDIMM )
MEMORY SPEEDS: UP TO 2666MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NUMBER OF CHANNELS: 8 CHANNELS
NOTE:
- MIXING OF LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORTS
HARD DRIVE SUPPORT: UP TO ( 2 ) TWO 2.5 INCH SFF HOT SWAP HARD DRIVE
ADDITIONAL STORAGE SUPPORT: UP TO ( 2 ) TWO M.2 INTERFACES ( 22110 / 2280 )
STORAGE TYPE: HDD / SSD / M.2
STORAGE PROTOCOL: SAS3 ( 12GB/S ) / SATA3 ( 6GB/S ) / PCIE NVME
NOTE:
- FRONT BAYS DO NOT SUPPORT PCIE NVME
- SAS DRIVES SUPPORTED VIA HBA / RAID ADAPTER. NOT INCLUDED WITH THIS CONFIGURATION
- M.2 SUPPORTS PCIE NVME AND SATA ONLY
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 7 ) SEVEN PCI-E INTERFACES
PCI INTERFACE TYPE: PCI-E 3.0 - INTERFACES MAY VARY
- 6X16 FULL HEIGHT, FULL LENGTH
- 1X16 FULL HEIGHT, HALF LENGTH
NOTE:
- CONFIGURATION CAN SUPPORT UP TO 4 DUAL WIDTH GPU + 1 SINGLE WIDTH GPU
- GPUs, CONTROLLERS, HBAs AND NETWORK CARDS ARE NOT INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
NETWORKING
- ( 2 ) TWO 10GBE LAN PORT ( INTEL X550-AT2 )
- ( 1 ) ONE GBE DEDICATED FOR IPMI
POWER SUPPLY
- ( 2 ) TWO 1600W POWER SUPPLIES ( HSPS / RPSU )
OPERATING SYSTEMS SUPPORTED
- WINDOWS SERVER 2012 R2 UPDATE DATACENTER X64
- WINDOWS SERVER 2016 V10.0.14393
- WINDOWS SERVER 2019 V1809
- LINUX RHEL 6.9 X64
- LINUX RHEL 7.4 X64
- LINUX RHEL 7.5 X64
- LINUX RHEL 7.6 X64
- LINUX RHEL 7.7 X64
- LINUX RHEL 8.0 X64
- LINUX SLES 11 SP4 X64
- LINUX SLES 12 SP3 X64
- LINUX UBUNTU 16.04 X64 LTS
- LINUX UBUNTU 17.04 X64 LTS
- LINUX UBUNTU 18.04 X64 LTS
- LINUX CENTOS 6.9 X64
- LINUX CENTOS 7.5 X64
FORM FACTOR
- 1U RACKMOUNT
- 34.84 INCH X 17.24 INCH X 1.71 INCH
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON DELL TECHNICAL GUIDE DOCUMENTATION DATED FEBRUARY 2024 - INFORMATION MAY CHANGE
