Product Details:

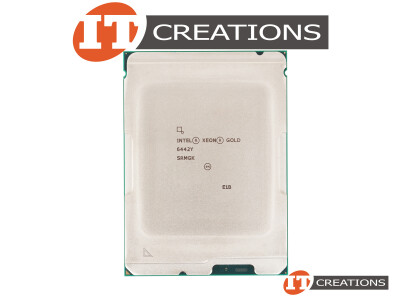

INTEL XEON GOLD 24 CORE PROCESSOR 6442Y 2.60GHZ 60MB CACHE 16GT/S UPI TDP 225W 2S FCLGA4677 ( SAPPHIRE RAPIDS ) ( 4TH GEN SCALABLE ) - SPEEDSELECT TECHNOLOGY - SPEED SELECT
MANUFACTURER: INTEL
PART NUMBER: SRMGK
CPU SERIES: 4TH GEN INTEL XEON SCALABLE ( GOLD 6400 SERIES )
PROCESSOR CODE NAME: SAPPHIRE RAPIDS
SOCKETS SUPPORTED: FCLGA4677
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 2.60GHZ
CPU MAX TURBO FREQUENCY: 4.00GHZ
MULTI-CORE: 24-CORE
THREADS: 48
CACHE: 60MB
INTEL UPI SPEED: 16GT/S
MAX NUMBER UPI LINKS: 3
LITHOGRAPHY: INTEL 7
THERMAL DESIGN POWER: 225W
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE ( INTEL SST-PP )
CONFIG 0: 24 CORE / 2.6GHZ / 225W
CONFIG 1: 20 CORE / 2.7GHZ / 205W
CONFIG 2: 16 CORE / 2.9GHZ / 205W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 4TB ( 4,000GB )
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 4400 MHZ 2DPC / 4800 MHZ 1DPC
MAX NUM. MEMORY CHANNELS: 8
ERROR CORRECTION CODE SUPPORT ( ECC ): YES
EXPANSION OPTIONS
SCALABILITY: 2S
PCI EXPRESSION REVISION: 5.0
MAX NUM. OF PCI LANES: 80
ADVANCED TECHNOLOGIES
INTEL ON DEMAND FEATURE ACTIVATION: YES
INTEL DATA STREAMING ACCELERATOR ( DSA ): 1 DEFAULT DEVICES
INTEL ADVANCED MATRIX EXTENSIONS ( AMX ): YES
INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
INTEL SPEED SELECT TECHNOLOGY - TURBO FREQUENCY: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE: YES
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: YES
HIGH PRIORITY CORES: 8
HIGH PRIORITY CORE FREQUENCY: 2.80GHZ
LOW PRIORITY CORES: 16
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL AMX, INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
SECURITY & RELIABILITY
INTEL CRYPTO ACCELERATION: YES
INTEL QUICKASSIST SOFTWARE ACCELERATION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 128GB
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
