Product Details:

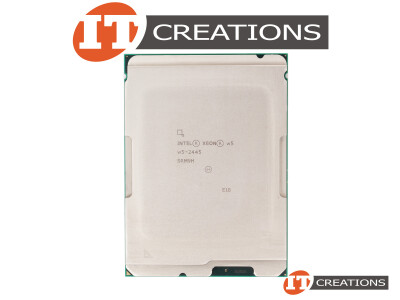

INTEL XEON 10C/0C 10 CORE PROCESSOR W5-2445 3.10GHZ BASE / 4.60GHZ MAX 26.25MB CACHE 0 GT/S BUS SPEED TDP 175W / 210W FCLGA4677 ( SAPPHIRE RAPIDS ) - 10 P-CORES / 0 E-CORES
MANUFACTURER: INTEL
PART NUMBER: SRM9H
CPU SERIES: INTEL XEON W PROCESSORS ( W5 SERIES )
PROCESSOR CODE NAME: SAPPHIRE RAPIDS
SOCKETS SUPPORTED: FCLGA4677
MAX CPU CONFIGURATION: 1
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 3.10GHZ
CPU MAX TURBO FREQUENCY: 4.60GHZ
INTEL TURBO BOOST MAX TECHNOLOGY 3.0 FREQUENCY: 4.60GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 4.40GHZ
TOTAL CORES: 10-CORE
NUM. OF PERFORMANCE CORES: 12-CORE
NUM. OF EFFICIENT CORES: 0
TOTAL THREADS: 20
INTEL SMART CACHE: 26.25MB
INTEL UPI SPEED: 0GT/S
MAX NUMBER UPI LINKS: 0
BASE POWER: 175W
MAXIMUM TURBO POWER: 210W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 2TB ( 2,000GB )
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 4800 MHZ
MAX NUM. MEMORY CHANNELS: 4
INTEL OPTANE PERSISTENT MEMORY SUPPORTED: NO
ERROR CORRECTION CODE SUPPORT ( ECC ): YES
EXPANSION OPTIONS
DIRECT MEDIA INTERFACE ( DMI ) REVISION: 4.0
SCALABILITY: 1S ONLY
PCI EXPRESSION REVISION: 5.0
MAX NUM. OF PCI LANES: 64
ADVANCED TECHNOLOGIES
INTEL QUICKASSIST TECHNOLOGY ( QAT ): 0 DEFAULT DEVICES
INTEL DYNAMIC LOAD BALANCER ( DLB ): 0 DEFAULT DEVICES
INTEL DATA STREAMING ACCELERATOR ( DSA ): 1 DEFAULT DEVICES
INTEL IN MEMORY ANALYTICS ACCELERATOR ( IAA ): 0 DEFAULT DEVICES
INTEL ADVANCED MATRIX EXTENSIONS ( AMX ): YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ) ON CPU: YES
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): NO
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET: 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL AMX, INTEL SSE4.2, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
SECURITY & RELIABILITY
INTEL VPRO ELIGIBILITY: INTEL VPRO ENTERPRISE
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): NO
INTEL THREAT DETECTION TECHNOLOGY ( TDT ): NO
INTEL ACTIVE MANAGEMENT TECHNOLOGY ( AMT ): YES
INTEL REMOTE PLATFORM ERASE ( RPE ): NO
INTEL ONE CLICK RECOVERY: NO
INTEL QUICKASSIST SOFTWARE ACCELERATION: NO
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ENCRYPTION - MULTI KEY: NO
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL ADVANCED ENCRYPTION STANDARD AES NEW INSTRUCTIONS: YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY WITH REDIRECT PROTECTION ( VT-RP ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
