Product Details:

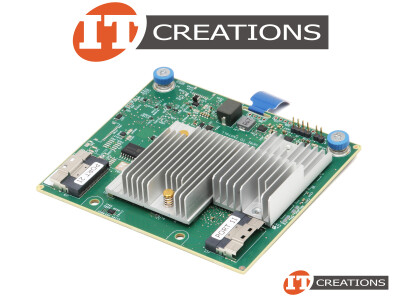

HP MR416I-A GEN10+ TRIMODE 16GB/S PCIE GEN4 NVME / 12GB/S SAS SIXTEEN PORT 4GB CACHE ENHANCED RAID CONTROLLER FOR HPE PROLIANT DL20 G10 PLUS / DL325 G10 PLUS V2 / DL345 G10 PLUS DL360 G10 ( GEN10 ) / DL360 G10 PLUS / DL365 G10 PLUS / DL380 G10 PLUS / DL385 G10 PLUS V2 ( GEN10 PLUS / G10+ / G10P ) - BROADCOM MEGARAID 416I-A / MR-416I-A / SAS3916 GEN10 PLUS PCI-E 4.0 NON VOLATILE MEMORY EXPRESS / 12GB/S SERIAL ATTACHED SCSI / 6GB/S SATA 16-PORT TYPE A MODULAR STORAGE CONTROLLER ( 2 ) TWO SLIMSAS 74 PIN SFF-8654 CONNECTORS ( 2X8 SLIM SAS 74P ) - RAIDS 0, 1, 5, 6, 10, 50, 60
MANUFACTURER: HP / BROADCOM
PART NUMBER: P22252-002
COMPATIBILITY: HPE PROLIANT DL20 G10 PLUS / DL325 G10 PLUS V2 / DL345 G10 PLUS DL360 G10 ( GEN10 ) / DL360 G10 PLUS / DL365 G10 PLUS / DL380 G10 PLUS / DL385 G10 PLUS V2 ( GEN10 PLUS / G10+ / G10P )
ADDITIONAL INFORMATION: MR416I-O CONTROLLER ONLY - NO CABLES INCLUDED
CARD DETAIL
TRANSFER RATE: 16GB/S PCIE NVME / 12GB/S SAS / 6GB/S SATA
PROTOCOL: PCIE NVME / SAS / SATA
CACHE: 4GB
DEVICE TYPE: RAID CONTROLLER
INTERFACE: PCI-E 4.0 X8
FORM FACTOR: TYPE A MODULAR
RAID LEVELS: 0, 1, 5, 6, 10, 50, 60, JBOD
DEVICES SUPPORTED: UP TO 16 PHYSICAL DRIVES OR 64 LOGICAL DRIVES
PORTS: SIXTEEN LANES ( 16P / 2X8 INTERNAL )
CONNECTORS: ( 1 ) ONE SLIMSAS 74 PIN SFF-8654 CONNECTOR ( 2X8 SLIM SAS 74P )
