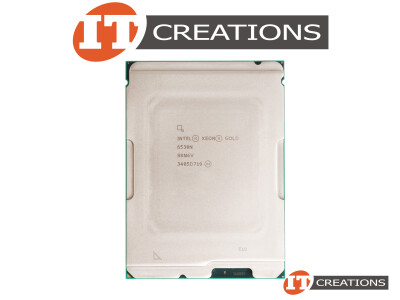

Product Details:
INTEL XEON GOLD 32 CORE PROCESSOR 6538N 2.1GHZ BASE / 4.1GHZ MAX 60MB CACHE 20GT/S UPI TDP 205W 2S FCLGA4677 ( EMERALD RAPIDS ) ( 5TH GEN SCALABLE ) - SPEEDSELECT TECHNOLOGY PERFORMANCE PROFILE SST-PP - SPEED SELECT
MANUFACTURER: INTEL
PART NUMBER: SRN6V
CPU SERIES: 5TH GEN INTEL XEON SCALABLE ( GOLD 6500 SERIES )
PROCESSOR CODE NAME: EMERALD RAPIDS
SOCKETS SUPPORTED: FCLGA4677
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 2.10GHZ
CPU MAX TURBO FREQUENCY: 4.10GHZ
MULTI-CORE: 32-CORE
THREADS: 64
CACHE: 60MB
INTEL UPI SPEED: 20GT/S
MAX NUMBER UPI LINKS: 3
LITHOGRAPHY: INTEL 7
THERMAL DESIGN POWER: 205W
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE ( INTEL SST-PP )
CONFIG 0: 32 CORE / 2.1GHZ / 205W
CONFIG 1: 32 CORE / 2.0GHZ / 205W
CONFIG 2: 32 CORE / 1.9GHZ / 185W
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 4TB ( 4,000GB )
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 5200 MHZ ( 1DPC )
MAX NUM. MEMORY CHANNELS: 8
ERROR CORRECTION CODE SUPPORT ( ECC ): YES
EXPANSION OPTIONS
SCALABILITY: 2S
PCI EXPRESSION REVISION: 5.0
MAX NUM. OF PCI LANES: 80
ADVANCED TECHNOLOGIES
INTEL ON DEMAND ACTIVATION MODEL: YES
INTEL QUICKASSIST TECHNOLOGY ( QAT ): 2 DEFAULT DEVICES
INTEL DYNAMIC LOAD BALANCER ( DLB ): 2 DEFAULT DEVICES
INTEL DATA STREAMING ACCELERATOR ( DSA ): 1 DEFAULT DEVICES
INTEL ADVANCED MATRIX EXTENSIONS ( AMX ): YES
INTEL SPEED SHIFT TECHNOLOGY - CORE POWER: YES
INTEL SPEED SHIFT TECHNOLOGY - TURBO FREQUENCY: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ) ON CPU: YES
INTEL SPEED SHIFT TECHNOLOGY - BASE FREQUENCY: YES
HIGH PRIORITY CORES: 12
HIGH PRIORITY CORE FREQUENCY: 2.3GHZ
LOW PRIORITY CORES: 20
LOW PRIORITY CORE FREQUENCY: 1.9GHZ
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( INTEL TSX ): YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL AMX, INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES
SECURITY & RELIABILITY
INTEL TRUST DOMAIN EXTENSIONS ( INTEL TDX ): YES
INTEL CRYPTO ACCELERATION: YES
INTEL QUICKASSIST SOFTWARE ACCELERATION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ENCRYPTION - MULTI KEY: YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL ADVANCED ENCRYPTION STANDARD AES NEW POINTER: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES WITH INTEL SPS
MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 128GB
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
