Product Details:

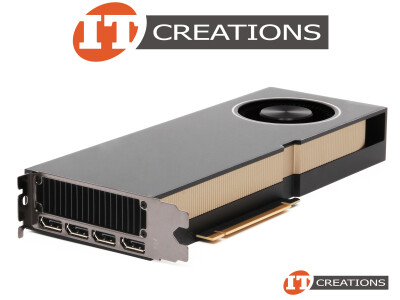

NVIDIA RTX 6000 ADA GPU 48GB 18176 CUDA CORES MEMORY 384 BIT GDDR6 MEMORY BANDWIDTH 960GB/S PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ADA GEN LOVELACE ARCHITECTURE - DUAL SLOT
MANUFACTURER: NVIDIA
PART NUMBER: NVIDIA RTX 6000 ADA
CONTENT INCLUDES: ( 1 ) ONE NVIDIA RTX 6000 ADA GPU - NO CABLES INCLUDED
ENGINE SPECS:
ENGINE ARCHITECTURE: ADA LOVELACE
CUDA CORES: 18176
TENSORE CORES ( 4TH GEN ): 568
RT CORES ( 3RD GEN ): 142
SINGLE PRECISION PERFORMANCE: 91.1 TFLOPS
RT CORE PERFORMANCE: 210.6 TFLOPS
TENSOR PERFORMANCE: 1457.0 TFLOPS
GPU CLOCK: 915 MHZ
BOOST CLOCK: 2505 MHZ
PROCESS SIZE: 5NM
TRANSISTORS: 76.3 BILLION
DIE SIZE: 609 MM SQUARE
MEMORY:
MEMORY CONFIGURATION: 48GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 960 GB/S
MEMORY CLOCK: 20 GB/S
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
ERROR CORRECTION CODE ( ECC ): YES
SUPPORTED TECHNOLOGIES: NVIDIA ADA LOVELACE TECHNOLOGY, CUDA CORES TECHNOLOGY, 3RD GEN RT CORES, 4TH GEN TENSOR CORES, HIGHER SPEED GDDR6 MEMORY, DIRECTX 12, SHADER MODEL 6.6, OPENGL 4.6, VULKAN 1.3, CUDA 11.6, OPENCL 3.0, DIRECTCOMPUTE, NVIDIA vPC / vAPPS, NVIDIA RTX VIRTUAL WORKSTATION, VR READY, 3D STEREO SUPPORT W/ CONNECTOR, GPUDIRECT, GPUDIRECT REMOTE DIRECT MEMORY ACCESS ( RDMA ), NVIDIA VIRTUAL GPU SOFTWARE ( vGPU ), NVIDIA QUADRO SYNC II COMPATIBILITY, NVIDIA RTX EXPERIENCE, NVIDIA RTX DESKTOP MANAGER SOFTWARE, NVIDIA RTX IO SUPPORT, HDCP 2.2, NVIDIA MOSAIC TECHNOLOGY, PCI EXPRESS GEN4
NVLINK SUPPORT: NO
CODE ENGINE: 3X ENCODE / 3X DECODE ( +AV1 ENCODE AND DECODE )
DISPLAY SUPPORT:
DISPLAY RESOLUTION: 7680 X 4320 AT 60HZ ( 2 DISPLAYS ) OR 5120 X 2880 AT 60HZ ( 4 DISPLAYS ) OR 4096 X 2160 AT 120HZ ( 4 DISPLAYS )
MULTI MONITOR: YES, UP TO 4 DISPLAYS
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE 16 PIN POWER CONNECTOR ( PCIE 12P+4P )
THERMAL AND POWER SPECS:
TOTAL POWER CONSUMPTION ( W ): 300W
SYSTEM REQUIREMENTS:
RECOMMENDED PSU ( W ): 700W
COOLING SYSTEM:
ACTIVE - ( 1 ) ONE ACTIVE FANSINK ( SINGLE FAN BLOWER )
FORM FACTOR:
DUAL SLOT
DIMENSIONS:
4.4 INCH ( H ) X 10.5 INCH ( L )
