Product Details:

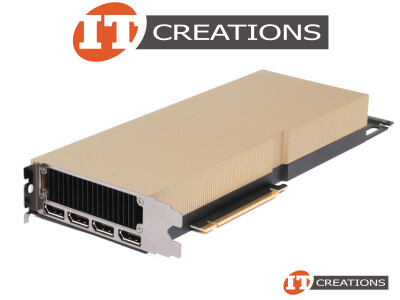

DELL NVIDIA L40S GPU ACCELERATOR 48GB 18176 CUDA CORES MEMORY INTERFACE 384 BIT GDDR6 MEMORY BANDWIDTH 864GB/S PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GENERAL PURPOSE GRAPHICS PROCESSING UNIT - ADA LOVELACE ARCHITECTURE BIDIRECTIONAL AIRFLOW PASSIVE HEATSINK 350W MAX POWER ( 1 ) ONE 16 PIN PWR CONNECTOR ( 12P+4P ) - DUAL SLOT DIMENSION 10.5 INCH ( L ) X 4.4 IN ( H )
MANUFACTURER: DELL / NVIDIA
PART NUMBER: 699-2G133-0242-L00-DELL
CONTENT INCLUDES: ( 1 ) ONE DELL NVIDIA L40S GPU ACCELERATOR - NO CABLES INCLUDED
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
ENGINE SPECS:
ENGINE ARCHITECTURE: ADA LOVELACE
GPU CLOCK ( BASE ): 1110 MHZ
BOOST CLOCK: 2520 MHZ
CUDA CORES: 18,176
NVIDIA THIRD GEN RT CORES: 142
NVIDIA FOURTH GEN TENSOR CORES: 568
RT CORE PERFORMANCE: 209 TFLOPS
FP32 PERFORMANCE: 91.6 TFLOPS
FP32 TENSOR PERFORMANCE: 183 TFLOPS / 366 TFLOPS ( WITH SPARSITY )
BFLOAT16 TENSOR PERFORMANCE: 362.05 TFLOPS / 733 TFLOPS ( WITH SPARSITY )
FP16 TENSOR PERFORMANCE: 362.05 TFLOPS / 733 TFLOPS ( WITH SPARSITY )
FP8 TENSOR PERFORMANCE: 733 TFLOPS / 1466 TFLOPS ( WITH SPARSITY )
PEAK INT8 TENSOR TOPS PERFORMANCE: 733 TFLOPS / 1466 TFLOPS ( WITH SPARSITY )
PEAK INT4 TENSOR TOPS PERFORMANCE: 733 TFLOPS / 1466 TFLOPS ( WITH SPARSITY )
MEMORY:
MEMORY CONFIGURATION: 48GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 384 BIT
MEMORY BANDWIDTH: 864 GB/S
MEMORY CLOCK: 9001 MHZ
ERROR CORRECTION CODE ( ECC ): YES
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16 ( ALSO SUPPORTED ON PCI-E 4.0 X8 / PCI-E 3.0 X16 )
BUS SPEEDS: 64GB/S BIDIRECTIONAL
SUPPORTED TECHNOLOGIES: NVIDIA CUDA CORE TECHNOLOGY ( 12.0 OR LATER ), THIRD GENERATION RT CORES, FOURTH GENERATION TENSOR CORES, RAY TRACING TECHNOLOGY, VIRTUAL GPU SOFTWARE SUPPORTED ( VGPU ), VGPU PROFILE SUPPORTED, NVENC 3X / NVDEC 3X ( INCLUDES AV1 ENCODE / DECODE ), SECURE BOOT WITH ROOT OF TRUST, NEBS READY LEVEL 3, FRAME LOCK SUPPORT VIA QUADRO SYNC II BOARD ( NOT INCLUDED ), PCI-E GEN4
OPERATING SYSTEMS: WINDOWS 10, WINDOWS 11, WINDOWS SERVER 2019, WINDOWS SERVER 2022, LINUX ( ENGLISH )
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE 16 PIN POWER CONNECTOR ( PCIE CEM5 12P+4P )
THERMAL AND POWER SPECS:
MAX POWER CONSUMPTION ( W ): 350W
COOLING SYSTEM:
- PASSIVE HEATSINK ( BIDIRECTIONAL AIRFLOW )
FORM FACTOR:
- DUAL SLOT, FULL HEIGHT FULL LENGTH
DIMENSIONS:
- 10.5 INCH ( L ) X 4.4 INCH ( H )
