Product Details:

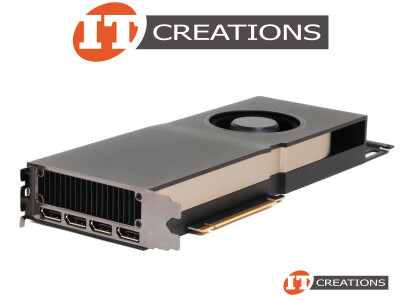

DELL NVIDIA RTX 5000 ADA GEN GPU 32GB 12800 CUDA CORES MEMORY INTERFACE 256 BIT GDDR6 MEMORY BANDWIDTH 576GB/S PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ADA LOVELACE ARCHITECTURE - DUAL SLOT
MANUFACTURER: DELL / NVIDIA
PART NUMBER: NVIDIA RTX 5000 ADA-DELL
CONTENT INCLUDES: ( 1 ) ONE DELL NVIDIA RTX 5000 ADA GPU - NO CABLES INCLUDED
ENGINE SPECS:
ENGINE ARCHITECTURE: ADA LOVELACE
CUDA CORES: 12,800
TENSORE CORES ( 4TH GEN ): 400
RT CORES ( 3RD GEN ): 100
SINGLE PRECISION PERFORMANCE: 65.3 TFLOPS
RT CORE PERFORMANCE: 151.0 TFLOPS
TENSOR PERFORMANCE: 1044.4 TFLOPS
GPU CLOCK: 1155 MHZ
BOOST CLOCK: 2550 MHZ
PROCESS SIZE: 5NM
TRANSISTORS: 76.3 BILLION
DIE SIZE: 609 MM SQUARE
MEMORY:
MEMORY CONFIGURATION: 32GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 256 BIT
MEMORY BANDWIDTH: 576 GB/S
MEMORY CLOCK: 18 GB/S
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
ERROR CORRECTION CODE ( ECC ): YES
SUPPORTED TECHNOLOGIES: NVIDIA ADA LOVELACE TECHNOLOGY, CUDA CORES TECHNOLOGY, 3RD GEN RT CORES, 4TH GEN TENSOR CORES, HIGHER SPEED GDDR6 MEMORY, DIRECTX 12, SHADER MODEL 6.7, OPENGL 4.6, VULKAN 1.3, CUDA 12.2, OPENCL 3.0, DIRECTCOMPUTE, NVIDIA vPC / vAPPS, NVIDIA GPUDIRECT FOR VIDEO SUPPORT, NVIDIA GPUDIRECT REMOTE DIRECT MEMORY ACCESS ( RDMA ) SUPPORT, NVIDIA QUADRO SYNC II COMPATIBILITY, NVIDIA RTX EXPERIENCE, NVIDIA RTX DESKTOP MANAGER SOFTWARE, NVIDIA RTX IO SUPPORT, NVIDIA MOSAIC TECHNOLOGY, VR READY, HDCP 2.2 SUPPORT, 3D STEREO SUPPORT WITH STEREO CONNECTOR, PCI EXPRESS GEN4
ERROR CORRECTION CODE ( ECC ): YES
NVLINK SUPPORT: NO
CODE ENGINE: 2X ENCODE / 2X DECODE ( +AV1 ENCODE AND DECODE )
OPERATING SYSTEM SUPPORTED: MICROSOFT WINDOWS 10, MICROSOFT WINDOWS 11, LINUX 64 BIT, FREEBSD 13.1, SOLARIS 11 U4
DISPLAY SUPPORT:
DISPLAY RESOLUTION: 7680 X 4320 AT 60HZ ( 2 DISPLAYS ) OR 5120 X 2880 AT 60HZ ( 4 DISPLAYS ) OR 4096 X 2160 AT 120HZ ( 4 DISPLAYS )
MULTI MONITOR: YES, UP TO 4 DISPLAYS
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE 16 PIN POWER CONNECTOR ( PCIE 12P+4P )
THERMAL AND POWER SPECS:
TOTAL POWER CONSUMPTION ( W ): 250W
SYSTEM REQUIREMENTS:
RECOMMENDED PSU ( W ): 600W
SYSTEM MEMORY: GREATER THAN OR EQUAL TO GPU; TWICE THE GPU MEMORY RECOMMENDED
COOLING SYSTEM:
ACTIVE - ( 1 ) ONE ACTIVE FANSINK ( SINGLE FAN BLOWER )
FORM FACTOR:
DUAL SLOT
DIMENSIONS:
4.4 INCH ( H ) X 10.5 INCH ( L )
