Product Details:

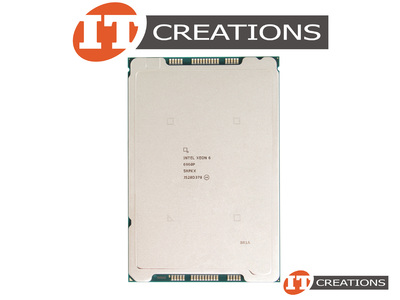

INTEL XEON 6 SERIES 72 CORE PROCESSOR 6960P 2.7GHZ BASE / 3.9GHZ MAX 432MB CACHE 24GT/S UPI TDP 500W 2S FCLGA7529 ( GRANITE RAPIDS ) ( 6TH GEN ) ( 6900 SERIES ) ( 2.70GHZ / 3.90GHZ ) - SPEEDSELECT TECHNOLOGY - PERFORMANCE PROFILE SST-PP / SPEED SELECT
MANUFACTURER: INTEL
PART NUMBER: SRPKX
CPU SERIES: INTEL XEON 6 SERIES ( 6900 SERIES )
PROCESSOR CODE NAME: GRANITE RAPIDS
SOCKETS SUPPORTED: FCLGA7529
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 2.7GHZ
ALL CORE TURBO FREQUENCY: 3.8GHZ
CPU MAX TURBO FREQUENCY: 3.9GHZ
MULTI-CORE: 72-CORE
THREADS: 144
CACHE: 432MB
INTEL UPI SPEED: 24GT/S
INTEL UPI LINKS: 6
LITHOGRAPHY: INTEL 3
THERMAL DESIGN POWER: 500W
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE ( INTEL SST-PP )
CONFIG 0: 72 CORE / 2.70GHZ / 500W / SERVER MODE
CONFIG 1: 72 CORE / 2.30GHZ / 400W / SERVER MODE
CONFIG 2: 66 CORE / 2.60GHZ / 450W / SERVER MODE
CONFIG 3: 48 CORE / 3.10GHZ / 450W / SERVER MODE
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 3TB ( 3,000GB )
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 6400 MHZ ( 8800 MHZ WHEN USING MRDIMM )
MAX NUM. MEMORY CHANNELS: 12
ERROR CORRECTION CODE SUPPORT ( ECC ): YES
EXPANSION OPTIONS
SCALABILITY: 2S
PCI EXPRESSION REVISION: 5.0
MAX NUM. OF PCI LANES: 96
ADVANCED TECHNOLOGIES
INTEL QUICKASSIST TECH ( QAT ): 4 DEFAULT DEVICES
INTEL DYNAMIC LOAD BALANCER ( DLB ): 4 DEFAULT DEVICES
INTEL DATA STREAMING ACCELERATOR ( DSA ): 4 DEFAULT DEVICES
INTEL IN MEMORY ANALYTICS ( IAA ): 4 DEFAULT DEVICES
INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
INTEL SPEED SELECT TECHNOLOGY - TURBO FREQUENCY: YES
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE: YES
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: YES
HIGH PRIORITY CORES: 24
HIGH PRIORITY CORE FREQUENCY: 2.9 GHZ
LOW PRIORITY CORES: 48
LOW PRIORITY CORE FREQUENCY: 2.5 GHZ
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL AMX, INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512
NUMBER OF AVX-512 FMA UNITS: 2
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES
SECURITY & RELIABILITY
INTEL TRUST DOMAIN EXTENSIONS ( INTEL TDX ): YES
INTEL SECURE KEY: YES
INTEL CRYPTO ACCELERATION: YES
INTEL QUICKASSIST SOFTWARE ACCELERATION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ENCRYPTION - MULTI KEY: YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL ADVANCED ENCRYPTION STANDARD AES: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES
DEFAULT MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 512GB
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
