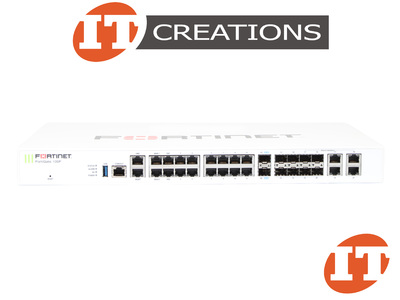

FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) video
FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) preview image #0
FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) preview image #1
FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) preview image #2
FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) preview image #3
FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) preview image #4
FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) preview image #5
FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) preview image #6

FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA ) (FG-100F)

Part Number: FG-100F

Condition: Refurbished

Availability: In Stock

Qty in stock:

0

0

1
as of 10/16/2026 07:32:00 PM PDT

$4,082.40

Go to Cart

IT Creations difference:

Free shipping on orders over $99.00* (within the continental US)
Inventory in Stock
Available for same day shipping on orders placed before 11am PDT
Product Details:

FORTINET FORTIGATE-100F FIREWALL - 1GB/S ETHERNET / 1GBE ( 16 ) SIXTEEN RJ45 PORTS ( RJ-45 ) ( X2 WAN / X2 HA )

MANUFACTURER: FORTINET
PART NUMBER: FG-100F

CONTENT INCLUDES: ( 1 ) ONE FORTINET FORTIGATE 100F FIREWALL ONLY - NO ADDITIONAL ACCESSORIES INCLUDED

NOTE:
- FORTICARE SUPPORT AND/OR FORTIGUARD PROTECTION SOLD SEPARATELY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS


PERFORMANCE

IPS THROUGHTPUT: 2.6GB/S
NGFW THROUGHTPUT: 1.6GB/S
THREAT PROTECTION THROUGHTPUT: 1GB/S


SYSTEM PERFORMANCE AND CAPACITY

IPV4 FIREWALL THROUGHPUT ( 1518 / 512 / 64 BYTE UDP ): 20GB/S / 18GB/S / 10GB/S
FIREWALL LATENCY ( 64 BYTE, UDP ): 4.97 MICROSECONDS
FIREWALL THROUGHPUT ( PACKET PER SECOND ): 15MP/S
CONCURRENT SESSIONS ( TCP ): 1.5 MILLION
NEW SESSIONS/SECOND ( TCP ): 56,000
FIREWALL POLICIES: 10,000
IPSEC VPN THROUGHPUT ( 512 BYTE ): 11.5GB/S


CONNECTOR TYPE

CONNECTORS ( 16 ) SIXTEEN 1GBE RJ45 ( RJ-45 )
ADDITIONAL CONNECTORS ( 2 ) TWO RJ45 MGMT / DMZ PORTS ( RJ-45 ) ( 2 ) TWO 10GBE SFP+ FORTILINK SLOTS ( 8 ) EIGHT 1GBE SFP SLOTS


DIMENSIONS AND POWER

FORM FACTOR: 1RU, EAR MOUNT
HEIGHT X WIDTH X LENGTH: 1.73 INCH X 17 INCH X 10 INCH
POWER SUPPLY: 100-240V AC, 50-60 HZ
POWER CONSUMPTION: 26.5W ( AVERAGE ) / 29.5W ( MAX )
