Product Details:

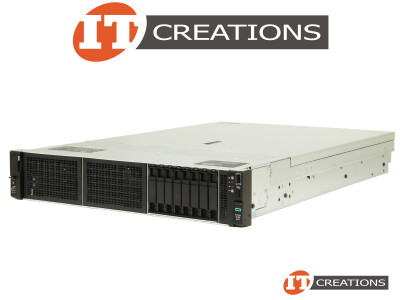

HPE PROLIANT DL385 G11 RACK 2.5 INCH SFF 8 BAY HPHD HPPS 2U SERVER CHASSIS ( GEN11 ) - ( 2 ) TWO SP5 SOCKETS ( COMPATIBLE WITH 5TH GEN / 4TH GEN AMD EPYC PROCESSORS - TURIN 9005 / GENOA GENOA-X BERGAMO 9004 SERIES ) ( 24 ) TWENTY FOUR DDR5 DIMM SLOTS - ( STANDARD SERVER CHASSIS FOR 8B - 16B / 24B VIA OPTIONAL CAGE BAY + REAR 6B - CHECK HD BACKPLANE AND CAGES OR BRACKETS FOR AVAILABLE OPTION ) ( NOT THE GPU MODEL )
MANUFACTURER: HP
PART NUMBER: HP DL385 G11 2.5 8B
NOTE:
- THIS MODEL IS A 2.5 INCH SFF 8 BAY SAS / SATA / NVME U.3 STANDARD OPTION ONLY ( UP TO 24 BAY SAS, SATA, OR NVME COMPATIBLE - 16B / 24B ARE OPTIONAL - CHECK FOR AVAILABILITY ). IF YOU DESIRE A 3.5 INCH LFF OR EDSFF SERVER CHASSIS , PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: SP5
PROCESSOR COMPATIBILITY: 5TH GEN AMD EPYC PROCESSORS ( TURIN 9005 SERIES ) / 4TH GEN AMD EPYC PROCESSORS ( GENOA / BERGAMO 9004 SERIES )
PROCESSOR CORE COUNT: UP TO 160 CORES ( PER SOCKET )
PROCESSOR TDP: UP TO 400W ( PER PROCESSOR )
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 24 ) TWENTY FOUR DIMM SLOTS ( 12 DIMMs PER PROCESSOR )
RDIMM MEMORY SIZE CAPACITY: UP TO 6TB
MEMORY SPEEDS: DDR5-6400MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 12 CHANNELS PER PROCESSOR ( 1 DIMMS PER CHANNEL )
NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- LRDIMM AND PERSISTENT MEMORY ARE NOT SUPPORTED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 8 ) EIGHT 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY IS STANDARD + 16B / 24B IS OPTIONAL - 8+8+8 )
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL: SAS4 / SATA3 / PCIE GEN4 NVME
SAS MAX STORAGE SIZE: UP TO 81.6TB HDD OR 261.12TB SSD
SATA MAX STORAGE SIZE: UP TO 68TB HDD OR 261.12TB SSD
PCIE NVME MAX STORAGE SIZE: UP TO 522.24TB
ADDITIONAL STORAGE SUPPORT:
- ( 8 ) EIGHT 2.5 INCH SFF BAYS ( VIA OPTIONAL MID TRAY )
- ( 2 ) TWO 2.5 INCH SFF BAY ( VIA REAR 2.5 CAGE )
- ( 2 ) TWO PCIE NVME M.2 SSDs ( VIA OPTIONAL HOT PLUG BOOT DEVICE )
NOTE:
- 8+8+8 STORAGE CONFIGURATIONS ALSO AVAILABLE ( 8 BAY IS STANDARD - 16B / 24B ARE OPTIONAL ). PLEASE CHECK FOR AVAILABILITY
- ( 8 ) EIGHT 2.5 INCH SFF BAYS VIA MID BAY IS OPTIONAL ( OPTIONAL )
- ADDITIONAL ( 2 ) TWO 2.5 INCH SFF BAYS SUPPORTED VIA REAR RISER BAY ( OPTIONAL )
- REAR BAY STORAGE INSTALLATION WILL AFFECT EXPANSION SLOTS CAPABILITIES
- ( 2 ) TWO M.2 INTERFACES VIA HT PLG BOOT OPT DEV ( SUPPORTS 2 X 480GB )
- NS204I-U CAGE MODULE MUST BE SELECTED FOR M.2 OPTION ( EXTERNAL )
- OPTIONAL BAYS MUST BE INSTALLED TO REACH MAXIMUM CAPACITY STORAGE
- IF YOU DESIRE A 2.5 INCH SFF 48B, 3.5 INCH LFF OR EDSFF 20 BAY CHASSIS, PLEASE CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 8 ) EIGHT PCI-E SLOTS ( 2 ) TWO MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 5.0 - INTERFACES VARY
PRIMARY RISER:
- 1X16 FHHL ( STANDARD PRIMARY RISER1 )
- 3X16 FHHL ( PRIMARY RISER2 )
- 1X16 FHHL ( PRIMARY RISER3 - COMPATIBLE WHEN REAR 3.5 INCH LFF IS CONFIGURED )
SECONDARY RISER: ( OPTIONAL )
- 1X16 FHHL ( SECONDARY RISER1 )
- 2X16 FHHL ( SECONDARY RISER2 )
- 3X16 FHHL ( SECONDARY RISER3 - COMPATIBLE WHEN REAR 3.5 INCH LFF IS CONFIGURED )
- 1X16 FHHL ( SECONDARY RISER4 - COMPATIBLE WHEN REAR 3.5 INCH LFF IS CONFIGURED )
- 1X16 HHHL ( SECONDARY RISER5 - COMPATIBLE WHEN REAR 3.5 INCH LFF + NS204I-U IS CONFIGURED )
TERTIARY RISER: ( OPTIONAL )
- 2X16 FHHL TERTIARY RISER1 ( OPTIONAL )
- ( 2 ) TWO 2.5 INCH SFF CAGE ( OPTIONAL )
OCP SUPPORT DETAIL:
- ( 2 ) TWO OCP 3.0 MEZZANINE SLOT
NOTE:
- SECONDARY AND TERTIARY REQUIRE 2ND PROCESSOR CONFIGURATION
- OCP 3.0 SLOT 2 REQUIRES 2ND PROCESSOR CONFIGURATION + UPGRADE CABLE KIT
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 800W / 1000W / 1600W / 1800W-2200W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER
- VMWARE
- RED HAT ENTERPRISE LINUX ( RHEL )
- SUSE LINUX ENTERPRISE SERVER ( SLES )
- CANONICAL UBUNTU
- ORACLE LINUX
- XENSERVER
- COMMUNITY ENTERPRISE LINUX ( CENTOS, ALMA LINUX, ROCKY LINUX, OPENEULER )
- SAP LINUX
- WIND RIVER LINUX
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED AUGUST 2026 - INFORMATION MAY CHANGE
