Product Details:

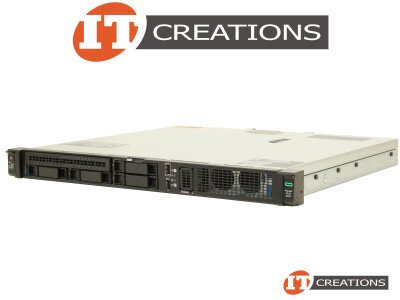

HPE PROLIANT DL20 G11 RACK 2.5 INCH SFF 4 BAY HPHD HPPS 1U SERVER CHASSIS ( GEN11 )
MANUFACTURER: HP
PART NUMBER: HP DL20 G11 2.5
NOTE: THIS MODEL IS A 2.5 INCH SFF 4 BAY SAS / SATA STANDARD OPTION ONLY ( UP TO 6 BAY SAS / SATA COMPATIBLE - CHECK FOR AVAILABILITY ). IF YOU DESIRE A 3.5 INCH LFF ( UP TO 2 BAY SAS / SATA ) HPHD OR NHPHD OPTIONS, PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 1 ) ONE CPU
PROCESSOR SOCKET TYPE: LGA1700
PROCESSOR COMPATIBILITY: 6TH GEN INTEL XEON PROCESSORS ( 6300 SERIES ) / INTEL XEON E PROCESSORS / INTEL PENTIUM PROCESSORS ( RAPTOR LAKE )
PROCESSOR CORE COUNT: UP TO 8 CORES
PROCESSOR TDP: UP TO 95W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 4 ) FOUR DIMM SLOTS
RDIMM MEMORY SIZE CAPACITY: UP TO 128GB
MEMORY SPEEDS: DDR5-4400MHZ ( UDIMM )
NUMBER OF CHANNELS: 2 CHANNELS ( 2 DIMMS PER CHANNEL )
NOTE:
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 6 ) SIX 2.5 INCH SFF HARD DRIVES ( 4 BAY SAS / SATA IS STANDARD + 2 BAY IS OPTIONAL )
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL: SAS4 / SATA3 / PCIE GEN4 NVME
MAX STORAGE SIZE:
- 14.4TB ( SAS HDD )
- 12TB ( SATA HDD )
- 92.16TB ( SAS SSD )
- 46.08TB ( SATA SSD )
- 92.16TB ( SAS HDD / PCIE NVME OPTIONAL 2 BAY )
- 46.08TB ( SATA HDD / PCIE NVME OPTIONAL 2 BAY )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO M.2 PCIE NVME ( 2X4TB ) ( VIA OPTIONAL M.2 ENABLEMENT KIT )
NOTE:
- 4+2 STORAGE CONFIGURATIONS ALSO AVAILABLE
- ( 2 ) TWO 2.5 INCH SFF BAYS VIA FRONT MEDIA BAY IS OPTIONAL
- M.2 SUPPORTS UP TO 8TB ( 2X4TB ) PCIE NVME ( OPTIONAL )
- OPTIONAL BAYS MUST BE INSTALLED TO REACH MAXIMUM CAPACITY STORAGE
- IF YOU DESIRE A 3.5 INCH LFF OPTION CHASSIS, PLEASE CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 1 ) TWO PCI-E SLOT ( 1 ) ONE MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 5.0
- 1X16 FHHL ( 1X16 CONNECTORS ) ( STANDARD RISER )
- ( 1 ) ONE OCP 3.0 MEZZANINE SLOT ( PCI-E 5.0 X4 BANDWIDTH )
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 500W / 800W / 1000W
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED JUNE 2025 - INFORMATION MAY CHANGE
