Product Details:

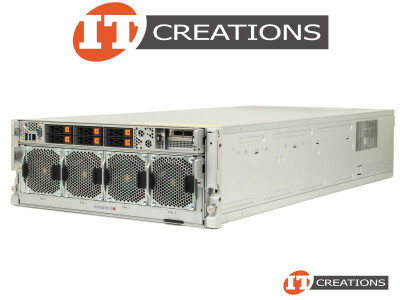

SUPERMICRO GPU SUPERSERVER SYS-420GP-TNAR+ RACK 2.5 INCH SFF 6 BAY HSHD HSPS X8 NVIDIA HGX A100 PRE CONFIGURATION 4U SERVER CHASSIS ( CSE-438G ) - SUPPORTS SUPER X12DGO-6 MOBO ( 2 ) TWO FCLGA4189 SOCKETS ( COMPATIBLE WITH 3RD GEN INTEL XEON SCALABLE PROCESSORS - ICE LAKE ) ( 32 ) THIRTY TWO DDR4 DIMM SLOTS ( 10 ) TEN PCI-E 4.0 INTERFACES ( 8X16 HH REAR + 2X16 HH FRONT ) ( 1 ) ONE AIOM / OCP 3.0 MEZZANINE SLOT ( BANDWIDTH PCIE 4.0 X16 ) - ( 2 ) TWO PCI-E 4.0 X4 NVME M.2 SLOTS + SMALL FORM FACTOR 6B / 6SFF ( SUPPORTS PCIE GEN4 NVME U.2 SSD ) HOT SWAP HARD DRIVE HOT SWAP POWER SUPPLY
MANUFACTURER: SUPERMICRO
PART NUMBER: SYS-420GP-TNAR-PLUS
CONFIGURATION INCLUDES: ( 1 ) ONE 4U CHASSIS ( 2 ) TWO CPU HEATSINKS ( 8 ) EIGHT NVIDIA A100 SXM4 80GB GPUs( 4 ) FOUR 3000W POWER SUPPLIES ( 1 ) ONE RACKMOUNT RAIL ASSEMBLY
NOTE:
- THIS PRE CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: FCLGA3647 ( SOCKET P )
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 2 ) TWO CPUs
PROCESSOR COMPATIBILITY: 3RD GEN INTEL XEON SCALABLE PROCESSORS ( ICE LAKE )
PROCESSOR CORES: UP TO 40 CORE ( PER PROCESSOR )
PROCESSOR TDP: UP TO 270W ( PER PROCESSOR )
NOTE:
- NO PROCESSORS INCLUDED WITH THIS CONFIGURATION
- IF ONLY 1 CPU SOCKET IS POPULATED, SOME PCIE OR MEMORY FUNCTIONS MIGHT BE UNAVAILABLE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS
MEMORY MAX CAPACITY: 8TB
MEMORY GENERATION: DDR4
MEMORY TYPE: RDIMM / LRDIMM
MEMORY SPEEDS: UP TO DDR4-3200MHZ ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 6 ) SIX 2.5 INCH SFF HOT SWAP HARD DRIVE
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL SUPPORT: PCIE 4.0 NVME / SAS ( 12GB/S ) / SATA ( 6GB/S )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO PCIE 4.0 NVME / SATA ( 6GB/S )
NOTE:
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 10 ) TWELVE PCI-E INTERFACE ( 1 ) ONE AIOM / OCP 3.0 MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 4.0 - INTERFACES MAY VARY
- 8X16 GEN4 HH ( REAR )
- 2X16 GEN4 HH ( FRONT )
- 1X16 GEN4 OCP 3.0 MEZZ SLOT
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
GRAPHICS SPECS
- ( 8 ) EIGHT NVIDIA A100 SXM4 80GB GPUs
NETWORKING
- ( 1 ) ONE BMC LAN PORT
POWER SUPPLY
- ( 4 ) FOUR 3000W POWER SUPPLIES
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2022
- MICROSOFT WINDOWS SERVER 2019
- MICROSOFT WINDOWS SERVER 2016
- RED HAT ENTERPRISE LINUX 8.4
- RED HAT ENTERPRISE LINUX 8.3
- RED HAT ENTERPRISE LINUX 8.2
- RED HAT ENTERPRISE LINUX 7.9
- SUSE LINUX ENTERPRISE SERVER 15 SP3
- UBUNTU 20.04.2
- ESXI 7.0 U3
- HYPERVISOR 8.2
- ORACLE LINUX 8.3
FORM FACTOR
- 4U RACKMOUNT
- 6.9 INCH H ( 174 MM ) X 17.6 INCH W ( 446MM ) X 35.4 INCH D ( 900MM )
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE PRE CONFIGURATION SUPERMICRO FACTORY RETAIL. UPGRADE OPTIONS ARE AVAILABLE. PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
