Product Details:

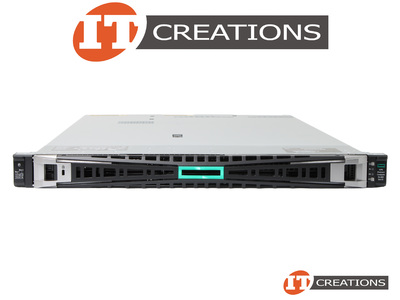

HPE PROLIANT COMPUTE DL360 G12 RACK 2.5 INCH SFF 8 BAY HPHD HPPS 1U SERVER CHASSIS ( GEN12 ) - ( 2 ) TWO FCLGA4710 SOCKETS ( COMPATIBLE WITH INTEL XEON 6 PROCESSORS - GRANITE RAPIDS 6900 6500 / SIERRA FOREST 6700 - 6TH GEN ) ( 32 ) THIRTY TWO DDR5 DIMM SLOTS - ( STANDARD SERVER CHASSIS FOR 8B 10B VIA OPTIONAL 2SFF CAGE ASSEMBLY - CHECK HD BACKPLANE AND CAGES OR BRACKETS FOR AVAILABLE OPTION ) - SMALL FORM FACTOR 8B / 8SFF HOT PLUG HARD DRIVE HOT PLUG POWER SUPPLY
MANUFACTURER: HP
PART NUMBER: HP DL360 G12 2.5 8B
NOTE:
- THIS MODEL IS A 2.5 INCH SFF 8 BAY SAS / SATA STANDARD OPTION ONLY ( UP TO 10 BAY SAS, SATA, OR NVME COMPATIBLE - CHECK FOR AVAILABILITY ). IF YOU DESIRE AN EDSFF CHASSIS OR 3.5 INCH LFF CHASSIS ( 4 BAY CHASSIS ), PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABILITY. OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY, STORAGE OR POWER SUPPLIES - PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR CUSTOMIZE CONFIGURATIONS
PROCESSOR SUPPORT
MAX NUMBER PROCESSOR CONFIGURATION: UP TO ( 2 ) TWO CPUs
PROCESSOR SOCKET TYPE: FCLGA4710
PROCESSOR COMPATIBILITY: INTEL XEON 6 SERIES ( 6TH GEN INTEL XEON PROCESSOR FAMILY ) ( GRANITE RAPIDS / SIERRA FOREST )
PROCESSOR CORE COUNT: UP TO 144 E-CORES OR 86 P-CORES PER SOCKET
PROCESSOR TDP: UP TO 350W
NOTE:
- E-CORES = EFFICIENCY CORES
- P-CORES = PERFORMANCE CORES
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 32 ) THIRTY TWO DIMM SLOTS ( 16 DIMMs PER PROCESSOR )
RDIMM MEMORY SIZE CAPACITY: UP TO 8TB ( 4TB PER SOCKET )
MEMORY SPEEDS: DDR5-6000MHZ ( SPEEDS MAY VARY BASED ON PROCESSOR MODEL AND/OR RAM TYPE )
NUMBER OF CHANNELS: 8 CHANNELS PER PROCESSOR ( 2 DIMMS PER CHANNEL )
NOTE:
- MIXING OF UDIMMs, LRDIMMs AND RDIMMs ARE NOT SUPPORTED
- MEMORY CAPACITY AND SPEEDS MAY VARY, BASED ON PROCESSOR MODEL
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 8 ) EIGHT 2.5 INCH SFF HOT PLUG HARD DRIVES ( 8 BAY SAS / SATA IS STANDARD - OPTIONAL BAYS UP TO 30 DRIVES TOTAL )
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL: SAS / SATA / PCIE NVME
SAS MAX STORAGE SIZE: UP TO 24TB HDD OR 153.6TB SSD
SATA MAX STORAGE SIZE: UP TO 76.8TB SSD
PCIE NVME MAX STORAGE SIZE: UP TO 153.6TB
NOTE:
- 2.5 INCH SFF 8 BAY IS STANDARD. 10B CONFIGURATIONS ARE OPTIONAL. CHECK FOR AVAILABILITY
- IF YOU DESIRE AN EDSFF OR 3.5 INCH LFF CHASSIS, PLEASE CHECK FOR AVAILABILITY
- FRONT OR REAR M.2 SUPPORTED FOR OS BOOT ONLY. ENABLEMENT KIT REQUIRED. CHECK FOR AVAILABILITY
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 3 ) THREE PCI-E SLOTS ( 4 ) FOUR OCP MEZZANINE SLOT
PCI INTERFACE TYPE: PCI-E 5.0 - INTERFACES VARY
PRIMARY RISER:
- 1X16 FH + 1X16 HH PRIMARY RISER1 ( STANDARD )
SECONDARY RISER: ( OPTIONAL )
- 1X16 FH SECONDARY RISER1 ( OPTIONAL )
- 1X16 HH SECONDARY RISER2 ( OPTIONAL )
OCP SUPPORT DETAIL: 2+2 ( FRONT + REAR )
- 1X OCP 3.0 X16 MEZZANINE SLOT14 ( OCP-A ) ( REAR ONBOARD ) + 1X OCP 3.0 X16 MEZZANINE SLOT15 ( OCP-B ) ( OCP-B SLOT IS DISABLED. CABLE KIT REQUIRED TO ENABLE OCP-B - CABLE NOT INCLUDED ) ( REAR OPTIONAL )
- 1X OCP 3.0 X16 MEZZANINE SLOT + 1X OCP 3.0 X16 MEZZANINE SLOT ( OPTIONAL VIA MULTIPURPOSE CAGE - BOX3 )
NOTE:
- REAR OCP-A ( SLOT14 ) RUNS AT X8 SPEEDS. REQUIRES CABLE KIT TO ENABLE X16 SPEEDS
- REAR OCP-B ( SLOT15 ) REQUIRES THE 2ND PROCESSOR CONFIGURATION ALONG WITH CABLE KIT TO ENABLE
- EXPANSION SLOTS CAN BE USED FOR STORAGE OPTIONS
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
POWER SUPPORT
NUMBER OF POWER SUPPLIES SUPPORT: UP TO ( 2 ) TWO SLOTS
POWER TYPES IN WATTAGE: 800W / 1000W / 1600W / 1800W-2200W
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE BASED ON HPE QUICKSPECS DOCUMENTATION DATED AUGUST 2026 - INFORMATION MAY CHANGE
