Product Details:

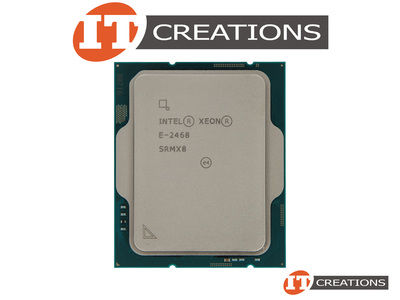

INTEL XEON E SERIES 8 CORE PROCESSOR E-2468 2.6GHZ BASE / 5.2GHZ MAX 24MB CACHE 16GT/S BUS SPEED TDP 65W 1S FCLGA1700 ( RAPTOR LAKE ) ( 2.60GHZ / 5.20GHZ ) - 8 P-CORES
MANUFACTURER: INTEL
PART NUMBER: SRMX8
CPU SERIES: INTEL XEON E PROCESSORS ( E-2400 SERIES )
PROCESSOR CODE NAME: RAPTOR LAKE
SOCKETS SUPPORTED: FCLGA1700
MAX CPU CONFIGURATION: 1
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU BASE FREQUENCY: 2.6GHZ
INTEL TURBO BOOST MAX TECHNOLOGY 3.0 FREQUENCY: 5.2GHZ
INTEL TURBO BOOST TECHNOLOGY 2.0 FREQUENCY: 5.2GHZ
MAX TURBO FREQUENCY: 5.2GHZ
TOTAL-CORE: 8-CORE
NUMBER OF PERFORMANCE-CORE: 8-CORE
THREADS: 16
CACHE: 24MB CACHE
BUS SPEED: 16GT/S
LITHOGRAPHY: INTEL 7
PROCESSOR BASE POWER: 35W
THERMAL DESIGN POWER ( TDP ): 65W
SUPPLEMENTAL INFORMATION
EMBEDDED OPTIONS AVAILABLE: NO
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 128GB
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 4800 MHZ
MAX NUM. MEMORY CHANNELS: 2
INTEL OPTANE PERSISTENT MEMORY SUPPORTED: NO
ECC MEMORY SUPPORTED: YES
EXPANSION OPTIONS
DIRECT MEDIA INTERFACE ( DMI ) REVISION: 5.0
MAX NUMBER OF DMI LANES: 8
SCALABILITY: 1S ONLY
PCI EXPRESS REVISION: 5.0
PCI EXPRESS CONFIGURATION: UP TO 1X16+1X4 / 2X8+1X4
MAX NUM. OF PCI LANES: 20
ADVANCED TECHNOLOGIES
INTEL TURBO BOOST MAX TECHNOLOGY 3.0: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS ( TSX ): NO
INTEL 64: YES
INSTRUCTION SET: INTEL 64 BIT
INSTRUCTION SET EXTENSIONS: INTEL SSE4.1, INTEL SSE4.2, INTEL AVX2
IDLE STATES: YES
ENHANCED INTEL SPEEDSTEP TECHNOLOGY: YES
THERMAL MONITORING TECHNOLOGIES: YES
SECURITY & RELIABILITY
INTEL TOTAL MEMORY ECRYPTION - MULTI KEY: YES
INTEL TOTAL MEMORY ECRYPTION: YES
INTEL AES NEW INSTRUCTIONS: YES
SECURE KEY: YES
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY WITH REDIRECT PROTECTION ( VT-RP ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
