Product Details:

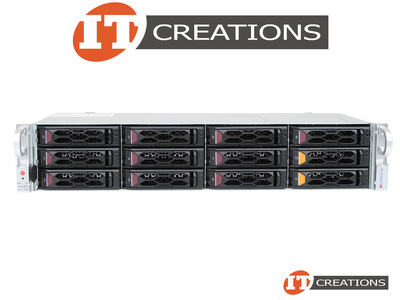

SUPERMICRO CLOUDDC A+ AS-2015CS-TNR RACK 3.5 INCH LFF 12 BAY U.2 / U.3 PCIE NVME HSHD HSPS PRE CONFIGURATION 2U SERVER CHASSIS ( CSE-LA26TS-R1K23AWP1 ) - SUPER H13SSW MOBO ( 1 ) ONE SP5 SOCKET ( COMPATIBLE WITH 5TH GEN / 4TH GEN AMD EPYC PROCESSORS - 9005 / 9004 SERIES ) ( 12 ) TWELVE DDR5 DIMM SLOTS UP TO ( 6 ) SIX PCI-E 5.0 INTERFACES ( 4X16 FHFL + 2X8 OPTIONAL ) ( 2 ) TWO OCP 3.0 AIOM MEZZANINE SLOT ( PCI-E 5.0 X16 BANDWIDTH ) - LARGE FORM FACTOR 12B / 12LFF HOT SWAP HARD DRIVE ( ALSO SUPPORTS SAS / SATA DRIVES ) HOT SWAP POWER SUPPLY
MANUFACTURER: SUPERMICRO
PART NUMBER: AS-2015CS-TNR-NEW
CONFIGURATION INCLUDES: ( 1 ) ONE 2U CHASSIS ( 1 ) ONE CPU HEATSINK ( 2 ) TWO 1200W POWER SUPPLIES ( 1 ) ONE RACKMOUNT RAIL ASSEMBLY
NOTE:
- THIS PRE CONFIGURATION OPTION DOES NOT INCLUDE ANY PROCESSORS, MEMORY OR STORAGE
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
PROCESSOR SUPPORT
PROCESSOR SOCKET TYPE: SP5
MAX NUMBER PROCESSOR SUPPORTED: UP TO ( 1 ) ONE CPU
PROCESSOR COMPATIBILITY: 5TH GEN AMD EPYC PROCESSORS ( TURIN - 9005 SERIES ) / 4TH GEN AMD EPYC PROCESSORS ( BERGAMO / GENOA / GENOA-X 9004 SERIES )
PROCESSOR CORES: UP TO 160 CORE ( PER PROCESSOR )
PROCESSOR TDP: UP TO 400W
NOTE:
- NO PROCESSOR INCLUDED WITH THIS CONFIGURATION
- PROCESSOR MODEL MAY AFFECT RAM SPEED
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
MEMORY SUPPORT
MEMORY SUPPORTED: UP TO ( 12 ) TWELVE DIMM SLOTS
MEMORY MAX CAPACITY: 3TB
MEMORY GENERATION: DDR5
MEMORY TYPE: RDIMM
MEMORY CHANNELS: 1DPC
MEMORY SPEEDS: UP TO DDR5-6400MHZ ( VIA 9005 SERIES CPU ) / UP TO DDR5-4800MHZ ( VIA 9004 SERIES CPU ) ( SPEEDS DEPENDENT ON PROCESSOR MODEL )
NOTE:
- NO DIMMs INCLUDED WITH THIS CONFIGURATION
- 4800MHZ ( AMD EPYC 9004 SERIES, MB R1.x / R2.0 / R2.01 )
- 6000MHZ ( AMD EPYC 9005 SERIES, MB R2.0 )
- 6400MHZ ( AMD EPYC 9005 SERIES, MB R2.01 )
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
STORAGE SUPPORT
HARD DRIVE SUPPORT: UP TO ( 12 ) TWELVE 3.5 INCH LFF HOT SWAP HARD DRIVES
STORAGE TYPE: HDD / SSD
STORAGE PROTOCOL SUPPORT: PCIE 5.0 NVME / SAS ( 12GB/S ) / SATA ( 6GB/S )
ADDITIONAL STORAGE SUPPORT: ( 2 ) TWO PCIE 3.0 X2 NVME M.2 INTEREACES ( 22110 / 2280 )
NOTE:
- NO DRIVES INCLUDED WITH THIS CONFIGURATION
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
EXPANSION SLOT SUPPORT
NUMBER OF PCI SLOTS SUPPORT: UP TO ( 6 ) SIX PCI-E 5.0 INTERFACES ( 2 ) TWO OCP 3.0 AIOM MEZZANINE SLOTS
PCI INTERFACE TYPE: PCI-E 5.0 - INTERFACES MAY VARY
- 2X16 FHFL + 2X16 FHHL
- 2X8 FHFL ( OPTIONAL )
- 1X16 GEN5 OCP 3.0 MEZZ SLOT
NOTE:
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
GRAPHICS SPECS
- UP TO ( 2 ) TWO DOUBLE WIDTH GPUs OR UP TO ( 4 ) FOUR SINGLE WIDTH GPUs
NETWORKING
- ( 1 ) ONE BMC LAN PORT
POWER SUPPLY
- ( 2 ) TWO 1200W POWER SUPPLIES
OPERATING SYSTEMS AND VIRTUALIZATION SOFTWARE SUPPORTED
- MICROSOFT WINDOWS SERVER 2025
- MICROSOFT WINDOWS SERVER 2022
- MICROSOFT WINDOWS SERVER 2019
- RED HAT ENTERPRISE LINUX 8.4
- RED HAT ENTERPRISE LINUX 8.3
- RED HAT ENTERPRISE LINUX 8.2
- RED HAT ENTERPRISE LINUX 7.9
- SUSE LINUX ENTERPRISE SERVER 15 SP3
- UBUNTU 20.04.2
- ESXI 7.0 U3
- HYPERVISOR 8.2
- ORACLE LINUX 8.3
FORM FACTOR
- 2U RACKMOUNT
- 3.5 INCH H ( 89 MM ) X 17.2 INCH W ( 437MM ) X 25.5 INCH D ( 648MM )
PLEASE BE ADVISED:
THE OPTIONS ABOVE ARE PRE CONFIGURATION SUPERMICRO FACTORY RETAIL. UPGRADE OPTIONS ARE AVAILABLE. PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE IF YOU DESIRE AN UPGRADED CONFIGURATION
