Product Details:

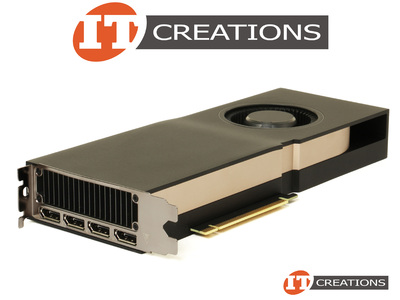

NVIDIA RTX 4500 ADA GEN GPU 24GB 7680 CUDA CORES MEMORY INTERFACE 192 BIT GDDR6 MEMORY BANDWIDTH 432GB/S PCI-E 4.0 X16 ( 4 ) FOUR DISPLAYPORTS DP GRAPHICS PROCESSING UNIT VIDEO CARD - ADA LOVELACE ARCHITECTURE ACTIVE COOLING 210W MAX POWER ( 1 ) ONE 16 PIN PWR CONNECTOR ( 12P+4P ) - DUAL SLOT DIMENSIONS 10.5 INCH ( L ) X 4.4 IN ( H )
MANUFACTURER: NVIDIA
PART NUMBER: NVIDIA RTX 4500 ADA-DELL
CONTENT INCLUDES: ( 1 ) ONE DELL NVIDIA RTX 4500 ADA GEN GPU - NO CABLES INCLUDED
ENGINE SPECS:
ENGINE ARCHITECTURE: ADA LOVELACE
CUDA CORES: 7680
TENSORE CORES ( 4TH GEN ): 240
RT CORES ( 3RD GEN ): 60
SINGLE PRECISION PERFORMANCE: 39.6 TFLOPS
RT CORE PERFORMANCE: 91.6 TFLOPS
TENSOR PERFORMANCE: 634.0 TFLOPS
GPU CLOCK: 2070 MHZ
BOOST CLOCK: 2580 MHZ
PROCESS SIZE: 5NM
TRANSISTORS: 45.9 BILLION
DIE SIZE: 379 MM SQUARE
MEMORY:
MEMORY CONFIGURATION: 24GB
MEMORY INTERFACE: GDDR6
MEMORY INTERFACE WIDTH: 192 BIT
MEMORY BANDWIDTH: 432 GB/S
MEMORY CLOCK: 18 GB/S
SUPPORT:
BUS SUPPORT: PCI-E 4.0
PHYSICAL BUS INTERFACE: PCI-E 4.0 X16
ERROR CORRECTION CODE ( ECC ): YES
SUPPORTED TECHNOLOGIES: NVIDIA ADA LOVELACE TECHNOLOGY, CUDA CORES TECHNOLOGY, 3RD GEN RT CORES, 4TH GEN TENSOR CORES, HIGHER SPEED GDDR6 MEMORY, DIRECTX 12, SHADER MODEL 6.7, OPENGL 4.6, VULKAN 1.3, CUDA 12.2, OPENCL 3.0, DIRECTCOMPUTE, VR READY, DISPLAYPORT W/ AUDIO, 3D STEREO SUPPORT W/ CONNECTOR, GPUDIRECT FOR VIDEO SUPPORT, GPUDIRECT REMOTE DIRECT MEMORY ACCESS ( RDMA ), NVIDIA QUADRO SYNC II COMPATIBILITY, NVIDIA RTX EXPERIENCE, NVIDIA RTX DESKTOP MANAGER SOFTWARE, NVIDIA RTX IO SUPPORT, HDCP 2.2, NVIDIA MOSAIC TECHNOLOGY, PCI EXPRESS GEN4
NVLINK SUPPORT: NO
CODE ENGINE: AV1 ENCODE / DECODE
DISPLAY SUPPORT:
MULTI MONITOR: YES, UP TO 4 DISPLAYS
DISPLAY RESOLUTION:
- 7680 X 4320 AT 60HZ ( 2 DISPLAYS )
- 5120 X 2880 AT 60HZ ( 4 DISPLAYS )
- 4096 X 2160 AT 120HZ ( 4 DISPLAYS )
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS DP
POWER CONNECTORS: ( 1 ) ONE 16 PIN POWER CONNECTOR ( PCIE CEM5 12P+4P )
THERMAL AND POWER SPECS:
TOTAL POWER CONSUMPTION ( W ): 210W
SYSTEM REQUIREMENTS:
RECOMMENDED PSU ( W ): 550W
COOLING SYSTEM:
- ACTIVE - ( 1 ) ONE ACTIVE FANSINK ( SINGLE FAN BLOWER )
FORM FACTOR:
- DUAL SLOT
DIMENSIONS:
- 10.5 INCH ( L ) X 4.4 IN ( H )
