Product Details:

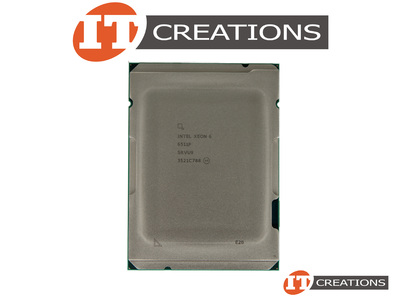

INTEL XEON 6 SERIES 16 CORE PROCESSOR 6511P 2.3GHZ BASE / 4.2GHZ MAX 72MB CACHE TDP 150W FCLGA4710 ( GRANITE RAPIDS ) ( 6TH GEN ) ( 6500 SERIES ) ( 2.30GHZ / 4.20GHZ )
MANUFACTURER: INTEL
PART NUMBER: SRVU9
CPU SERIES: INTEL XEON 6 SERIES ( 6500 SERIES )
PROCESSOR CODE NAME: GRANITE RAPIDS
SOCKETS SUPPORTED: FCLGA4710
NOTE: NO HEATSINK, NO ACCESSORIES OR TOOLS INCLUDED
PERFORMANCE
CPU FREQUENCY: 2.3GHZ
ALL CORE TURBO FREQUENCY: 4.1GHZ
CPU MAX TURBO FREQUENCY: 4.2GHZ
MULTI-CORE: 16-CORE
THREADS: 32
CACHE: 72MB
LITHOGRAPHY: INTEL 3
THERMAL DESIGN POWER: 150W
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE ( INTEL SST-PP )
CONFIG 0: 16 CORE / 2.30GHZ / 150W / SERVER MODE
CONFIG 1: 8 CORE / 3.00GHZ / 150W / SERVER MODE
MEMORY SPECS
MAX MEMORY SIZE ( DEPENDENT ON MEMORY TYPE ): 4TB ( 4,000GB )
MEMORY TYPES: DDR5
MAX MEMORY SPEEDS: 6400 MHZ
MAX NUM. MEMORY CHANNELS: 8
ERROR CORRECTION CODE SUPPORT ( ECC ): YES
EXPANSION OPTIONS
SCALABILITY: 1S
PCI EXPRESSION REVISION: 5.0
MAX NUM. OF PCI LANES: 136
ADVANCED TECHNOLOGIES
INTEL QUICKASSIST TECH ( QAT ): 2 DEFAULT DEVICES
INTEL DYNAMIC LOAD BALANCER ( DLB ): 2 DEFAULT DEVICES
INTEL DATA STREAMING ACCELERATOR ( DSA ): 2 DEFAULT DEVICES
INTEL IN MEMORY ANALYTICS ( IAA ): 2 DEFAULT DEVICES
INTEL ADVANCED MATRIX EXTENSIONS ( AMX ): YES
INTEL SPEED SELECT TECHNOLOGY - CORE POWER: YES
INTEL SPEED SELECT TECHNOLOGY - TURBO FREQUENCY: NO
INTEL DEEP LEARNING BOOST ( INTEL DL BOOST ): YES
INTEL SPEED SELECT TECHNOLOGY - PERFORMANCE PROFILE: YES
INTEL SPEED SELECT TECHNOLOGY - BASE FREQUENCY: YES
INTEL RESOURCE DIRECTOR TECHNOLOGY ( INTEL RDT ): YES
INTEL SPEED SHIFT TECHNOLOGY: YES
INTEL TURBO BOOST TECHNOLOGY: 2.0
INTEL HYPER THREADING TECHNOLOGY: YES
INTEL TRANSACTIONAL SYNCHRONIZATION EXTENSIONS: YES
INTEL 64: YES
INSTRUCTION SET EXTENSIONS: INTEL SSE4.2, INTEL AVX, INTEL AVX2, INTEL AVX-512, INTEL AMX
NUMBER OF AVX-512 FMA UNITS: 2
INTEL VOLUME MANAGEMENT DEVICE ( VMD ): YES
SECURITY & RELIABILITY
INTEL TRUST DOMAIN EXTENSIONS ( INTEL TDX ): YES
INTEL SECURE KEY: YES
INTEL CRYPTO ACCELERATION: YES
INTEL QUICKASSIST SOFTWARE ACCELERATION: YES
INTEL PLATFORM FIRMWARE RESILIENCE SUPPORT: YES
INTEL CONTROL FLOW ENFORCEMENT TECHNOLOGY: YES
INTEL TOTAL MEMORY ENCRYPTION - MULTI KEY: YES
INTEL TOTAL MEMORY ENCRYPTION: YES
INTEL ADVANCED ENCRYPTION STANDARD AES: YES
INTEL SOFTWARE GUARD EXTENSIONS ( INTEL SGX ): YES
DEFAULT MAXIMUM ENCLAVE PAGE CACHE ( EPC ) SIZE FOR INTEL SGX: 128GB
INTEL OS GUARD: YES
INTEL TRUSTED EXECUTION TECHNOLOGY: YES
EXECUTE DISABLE BIT: YES
INTEL BOOT GUARD: YES
INTEL RUN SURE TECHNOLOGY: YES
MODE BASED EXECUTE CONTROL ( MBEC ): YES
INTEL VIRTUALIZATION TECHNOLOGY ( VT-X ): YES
INTEL VIRTUALIZATION TECHNOLOGY FOR DIRECTED I/O ( VT-D ): YES
INTEL VT-X WITH EXTENDED PAGE TABLES ( EPT ): YES
