Product Details:

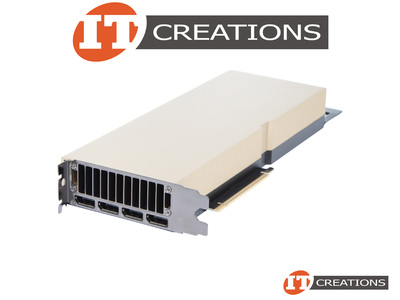

DELL NVIDIA RTX PRO 6000 BLACKWELL SERVER EDITION PASSIVE GPU 96GB 24064 CUDA CORES MEMORY INTERFACE 512 BIT GDDR7 MEMORY BANDWIDTH 1597GB/S PCI-E 5.0 X16 GRAPHICS PROCESSING UNIT VIDEO CARD - PASSIVE HEATSINK 600W MAX POWER ( 1 ) ONE 16 PIN PWR CONNECTOR ( 12P+4P ) - DUAL SLOT DIMENSIONS 10.5 INCH L X 4.4 IN H
MANUFACTURER: DELL / NVIDIA
PART NUMBER: THH68
CONTENT INCLUDES: ( 1 ) ONE NVIDIA RTX PRO 6000 BLACKWELL SERVER EDITION PASSIVE GPU - NO CABLES INCLUDED
ENGINE SPECS:
ENGINE ARCHITECTURE: BLACKWELL
CUDA CORES: 24,064
TENSORE CORES: 752 ( 5TH GEN )
RT CORES: 188 ( 4TH GEN )
SINGLE PRECISION PERFORMANCE ( FP32 ): 120 TFLOPS
PEAK FP4 AI PFLOPS: 4 PFLOPS
RT CORE PERFORMANCE: 355 TFLOPS
GPU CLOCK: 1852 MHZ
BOOST CLOCK: 2430 MHZ
PROCESS SIZE: 5NM
TRANSISTORS: 92.2 BILLION
DIE SIZE: 750 MM SQUARE
MEMORY:
MEMORY CONFIGURATION: 96GB
MEMORY INTERFACE: GDDR7
MEMORY INTERFACE WIDTH: 512 BIT
MEMORY BANDWIDTH: 1.5TB/S ( 1,597 GB/S )
MEMORY CLOCK: 12,481 MHZ
SUPPORT:
BUS SUPPORT: PCI-E 5.0
PHYSICAL BUS INTERFACE: PCI-E 5.0 X16
ERROR CORRECTION CODE ( ECC ): YES
SUPPORTED TECHNOLOGIES: NVIDIA BLACKWELL TECHNOLOGY, CUDA CORES TECHNOLOGY, 5TH GEN TENSOR CORES ( FP4 PRECISION, 4TH GEN RAY TRACING CORES, 9TH GEN NVENC, 6TH GEN NVDEC ( WITH 4:2:2 SUPPORT ), MULTI INSTANCE GPU ( MIG ) SUPPORT, NVIDIA AI ENTERPRISE, NVIDIA OMNIVERSE, MULTIMODAL AI INFERENCE, GENERATIVE AI, PHYSICAL AI, RENDERING, 3D GRAPHICS, VIDEO, PCI EXPRESS GEN5
OPERATING SYSTEM ( OS ): WINDOWS 10, WINDOWS 11, WINDOWS SERVER 2019, WINDOWS SERVER 2022, LINUX
HDCP SUPPORT: 2.2
NOTE:
- LINUX OS SUPPORTS ENGLISH ONLY ( US / UK )
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
DISPLAY SUPPORT:
MULTI MONITOR: YES, UP TO 4 DISPLAYS
DISPLAY RESOLUTION:
- 7680 X 4320 AT 165HZ ( 2 DISPLAYS )
- 3840 X 2160 X 24BPP AT 480HZ ( 4 DISPLAYS )
- 3840 X 2160 AT 165HZ ( 4 DISPLAYS )
NOTE:
- DP 2.1B WITH UHBR20: UP TO 4K AT 480HZ OR 8K AT 165HZ WITH DSC ( UHBR20: ULTRA HIGH BIT RATE 20 )
- PLEASE CONSULT YOUR IT CREATIONS REPRESENTATIVE FOR AVAILABLE OPTIONS
CONNECTIONS:
DISPLAY CONNECTORS: ( 4 ) FOUR DISPLAYPORTS ( DP 2.1 )
POWER CONNECTORS: ( 1 ) ONE 16 PIN POWER CONNECTOR ( PCIE CEM5 12P+4P )
THERMAL AND POWER SPECS:
TOTAL POWER CONSUMPTION ( W ): 600W
SYSTEM REQUIREMENTS:
RECOMMENDED PSU ( W ): 1000W
COOLING SYSTEM:
- PASSIVE ( BIDIRECTION AIRFLOW )
FORM FACTOR:
- DUAL SLOT
DIMENSIONS:
- 10.5 INCH ( L ) X 4.4 INCH ( H )
